אינטרקום דלפק חלון מכירת כרטיסים-יחידה ראשית

המחיר שלנו

מחיר משלוח: עד הבית/עסק UPS (עד 5 ק"ג): 50

IMU-100
ערכת מאסטר של IMU-100. כולל היחידה הראשית (MU-100) ויחידת הפעולה (OU-100) עם המחבר שסופק. הערה: IME-100 המיקרופון Gooseneck מצורף, אך נמכר בנפרד.

אינטרקום קופות איכותי,מתאים לבתי קולנוע, צ'יינגים ועוד מגוון אתרים ודרישות
דיבור דו כיווני פתוח לכל כיוון,סינון רעשים,מיקרופון איכותי ורגיש

IMU-100

IMU-100 Master Kit. Includes Main unit (MU-100) and Operation Unit (OU-100) with supplied connector. NOTE: IME-100 Gooseneck Microphone is pictured attached, but is sold separately.

התמונות והתיאור באתר להמחשה בלבד.
יש לעיין במפרט הטכני הרשמי של היצרן

תיאור

סדרת ה- IM היא מערכת חלון אבטחה המספקת תקשורת VOX המופעלת ללא ידיים בין לקוח לעובד בצדו השני של כדור הוכחה זכוכית. המערכת משתמשת במנהל רמקול ובצינור אקוסטי על מנת לספק תקשורת מבלי להתפשר על שלמות הזכוכית.
מאפיינים "
מיקרופון גמיש מתכוונן וגמיש
ניתן להשתמש באוזניה (לא מסופק על ידי Aiphone)
משתמשת במערכת תקשורת קולית (VOX), שאינה דורשת פעולות נוספות במהלך השיחה
כאשר מתג TALK כבוי, יחידת הפעולה נמצאת במצב המתנה, אך הצליל מהצד הציבורי עדיין נשמע בנפח מופחת
על ידי קישור המערכת לחיישן תנועה, מצב התקשורת מופעל כאשר לקוח קיים

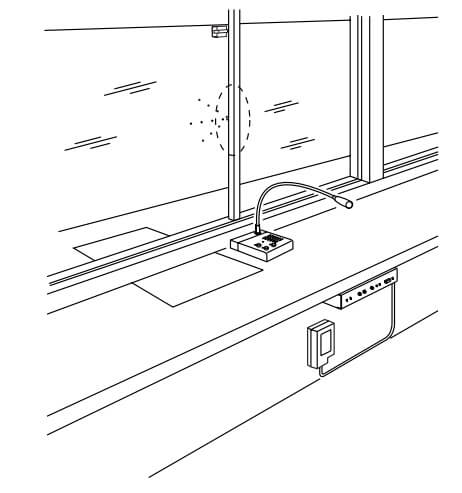

סדרת IM מערכת חלונות אבטחה

The IM Series is a security window system that provides VOX operated hands-free communication between a customer and an employee on opposite sides of bullet proof glass. The system uses a speaker driver and acoustic tubing to provide communication without compromising the integrity of the glass.

Features »

  • Adjustable, flexible gooseneck microphone
  • Headset can be used (not supplied by Aiphone)
  • Uses voice-actuated (VOX) communication system, requiring no additional operations during conversation
  • When the TALK switch is off, the Operation Unit is put in standby, but sound from public side is still heard at reduced volume
  • By linking the system to a motion sensor, communication mode is activated when a customer is present

Specifications »

Power Source

24V DC, 120mA standby, 780mA max. Use PS-2420UL

Communication

Voice-actuated communication (VOX) or simplex Transmit output: 3W 4Ω Receive output: 1.5W 16Ω Impedance: 32Ω

Headset

Φ3.5mm plug – Impedance: 32Ω Rated input: 40mW or more – Max. input: 100mW or more

External & Paging Speaker

Impedance: 4 to 8Ω Rated input: 3W or more – Max. input: 6W or more

Wiring

DR-100 to MU-100: 2 x 2-cond., overall shield

Wire Type

Aiphone #822202 or Aiphone #821802
