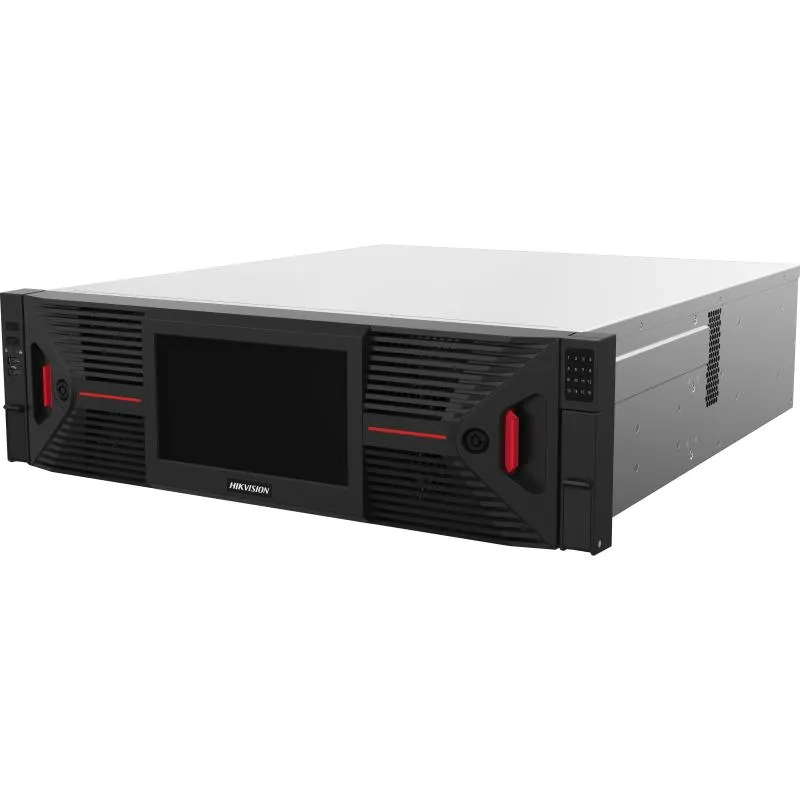

Hikvision DS-96128NI-H16R/LCD – 128-ch 3U 8K Super NVR

Video and Audio

• IP Video Input128-ch
• Incoming Bandwidth1024 Mbps
• Outgoing Bandwidth1024 Mbps
• Incoming Bandwidth (RAID Mode)1024 Mbps
• Outgoing Bandwidth (RAID mode)1024 Mbps
• HDMI 1 Output4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• HDMI 2 Output4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• VGA Output1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• DP 18K (7680 × 4320)/30Hz, 4K (4096×2160)/30 Hz, 4K (3840×2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• DP 28K (7680 × 4320)/30Hz, 4K (4096×2160)/30 Hz, 4K (3840×2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• V-DP 18K (7680 × 4320)/30Hz, 4K (4096×2160)/30 Hz, 4K (3840×2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• V-DP 28K (7680 × 4320)/30Hz, 4K (4096×2160)/30 Hz, 4K (3840×2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• Video Output Mode

  Provide 4 groups of video outputs. The video outputs in the same group provide simultaneous output, and the video outputs between each group provide independent output.

  Group 1: HDMI 1/VGA/LCD

  Group 2: HDMI 2

  Group 3: DP 1/V-DP 1

  Group 4: DP 2/V-DP 2

  Note: After enabling DP 1/DP 2, V-DP 1/V-DP 2 would be unavailable.

• Audio Output1-ch, 3.5mm
• Two-Way Audio1-ch, 3.5mm
• LCD Output7-inch LCD touch display (resolution: 1024 × 600)

Decoding

• Decoding FormatH.265+/H.265/H.264+/H.264
• Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback16-ch
• Decoding Capability

  3-ch@32 MP (30 fps)/3-ch@24 MP (30fps)/6-ch@16 MP (30fps)/12-ch@8 MP (30fps)/24-ch@4 MP (30fps)/48-ch@2 MP (30fps)

  *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.

• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Network

• Network Interface4, RJ-45 10/100/1000/2500 Mbps self-adaptive Ethernet interface
• DS-96128NI-H16R/LCD NVR by hikvision also supports Network Protocols:- TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Remote Connection256

RAID

• RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10

Auxiliary Interface

• eSATA1 eSATA interface
• SATA16 SATA interfaces supporting hot-plug
• CapacityUp to 20 TB for each HDD
• Serial Interface1 RS-485 (full-duplex), 1 RS-232
• Alarm In/Out16/8
• USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 4 × USB 3.0
• Fiber Optic Interface4, Gigabit Ethernet interface

General

• Power Supply100 to 240 VAC, 50 to 60 Hz, redundant power supply
• Consumption≤ 75 W (without HDD)
• Working Temperature0 °C to + 50 °C (32 °F to 122 °F)
• Working Humidity10% to 90%
• Chassis3U chassis
• DS-96128NI-H16R/LCD NVR Dimensions are:- (W × D × H)447 × 489 × 133 mm (17.6" × 19.3" × 5.2")
• Weight≤25 kg (without HDD, 55.1 lb.)
