COVERAGES
VXI-ST OUTDOOR PIR DETECTOR
The VX InfinityTM series provide highly reliable detection functions, reducing false reports or report losses.
The VX InfinityTM series deliver stable detection performance even in severe outdoor environments.

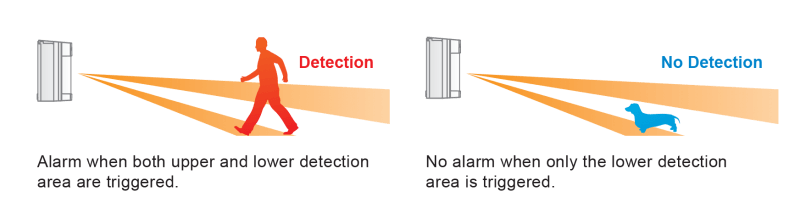

12 m (40 ft.) by 90 degree flexible detection pattern adjustable to 5 ranges
SMDA logic for advanced temperature compensation and environmental noise immunity
Easy masking for over spill prevention
Double conductive shielding against bright light disturbance
Conduit/TX-battery case for both wired and wireless-ready models
| Model | VXI-ST |
| Detection method | Passive infrared |
| PIR coverage | 12.0 m (40 ft) 90° wide / 16 zones |
| PIR distance limit | 12 – 2.5 m (5 levels) |
| Detectable speed | 0.3 – 1.5 m/s (1 – 5 ft/s) |
| Sensitivity | 2.0°C (3.6°F) at 0.6 m/s (2 ft/s) |
| Power input | 9.5 – 18 V DC |
| Current draw | 20 mA (max) at 12 V DC |
| Alarm period | 2.0 ±1 sec. |
| Warm-up period | Approx. 60 sec. (LED blinks) |
| Alarm output | N.C. / N.O. Selectable 28 V DC 0.1 A (max) |
| Trouble output | – |
| Tamper output | N.C.28 V DC 0.1A (max) open when cover removed. |
| LED indicator | Red: Warm-up, alarm, masking detection (VXI-AM only) |
| RF interference | No alarm 10 V/m |
| Operating temperature | -30 – +60°C (-22 – +140°F) |
| Environment humidity | 95% max. |
| International protection | IP55 |
| Mounting | Wall, Pole (Outdoor, Indoor) |
| Mounting height | 0.8 – 1.2 m (2.64 ft – 3.94 ft) |
| Weight | 500 g (17.7 oz.) |
| Accessories | Screw (4×20 mm) ×2 , Wiring sponge ×3 , Masking seal ×3 |
| VXI-T-Bracket | |
*VXI-DAM and VXI-RDAM can not be used due to microwave interference. |
| Plug in EOL(End of line) Resistor Modules | |
Different values of EOL  resistances can be instantly set by plugging in optional modules. Please refer to the relevant control panels manual to confirm matching resistance values. |
| Item | Trouble | Alarm | Tamper | Panels |
| PEU-B | 6.8K | 4.7K | 4.7K | Old GE/Aritech |
| PEU-C | 12.0K | 1.1K | 1.1K | Honeywell Galaxy (U.K.) |
| PEU-D | 3.0K | 1.1K | 1.1K | Honeywell Galaxy (Benelux) |
| PEU-E | 15.0K | 1.1K | 1.1K | Satel |
| PEU-F | 5.6K | 5.6K | 5.6K | DSC |
| PEU-G | 8.2K | 8.2K | 8.2K | Guardall |
| PEU-H | 2.2K | 4.7K | 2.2K | Old Texecom, Cooper, Scantronics etc. |
| PEU-I | 1.0K | 3.3K | 3.3K | New Texecom, NetworX, Inim |
| PEU-J | 12.0K | 6.8K | 4.7K | Risco ProSYS |
| PEU-K | 2.2K | 1.0K | 1.0K | Siemens SPC |
