מסך מגע Touch שילוט מקצועי עומד עצמאית 24/7 תוצרת HIKVISION בגודל 55" ברזולוציה 4K

10-point capacitive touch, suitable for installing self ordering or navigation applications, facilitating self-service operation.

• Metal shell appearance, slim frame, and all-in-one design, suitable for advertising display at store entrances.
• Exquisite image, industrial A+ panel, auto-coloring and image-enhancing engine.
• Frosted glass, anti-glare, clearer images, and wider viewing angles.
• Variable materials, static and dynamic materials, including pictures, audio, video, scrolling subtitle, PDF, webpages, live video, number calling, pop-up pictures, etc.
• Flexible program schedule, free schedules and district play of multiple materials and variable play modes: play by day, play by week, play by loop, custom play, etc.
• Centralized management, remotely control and manage one screen or more screens, such as timed startup/shutdown, quick startup/shutdown, brightness/volume timed adjustment, and screenshot preview, remotely release programs and updates local (USB) programs.
• Organization permission, 5-level organization is available for managing materials, programs, terminals, and users, and support creating custom users, allocating permission for users according to user level, and permission templates.
• Multiple security safeguards, 3-level check of materials, programs and schedules to prevent mistake release, encryption of data in storage and transmission to prevent data tampering, and with no default password, users can activate and set initial password to guarantee the password safety.

  • Specification

    Product Model
    Product Model	DS-D6055UT-D/S
    Display
    Screen Size	55 inch
    Resolution	3840 × 2160
    Active Display Area	1209.6 (H) × 680.4 (V) mm
    Pixel Pitch	0.315 (H) mm × 0.315 (V) mm
    Backlight	E-LED
    Viewing Angle	178°(H)/178°(V)
    Brightness	500 cd/m²
    Contrast Ratio	1200:1
    Color Depth	10 bit (8 bit + FRC)
    Response Time	8 ms
    Color Gamut	72% NTSC
    Reliability	7 × 24h
    Refresh Rate	60 Hz
    Haze	20%
    Display Ratio	9 : 16
    Panel Type	IPS
    Touch
    Touch Type	Capacitive Touch (G+G)
    Touch Point	10
    Touch Response Time	< 25 ms
    Touch Precision	± 2 mm
    Built-in System
    Operation System	Android 13
    Processor	Cortex-A55, 4-core, main frequency 1.92 GHz
    Memory	4 GB
    Built-in Storage	32 GB EMMC
    Interface
    Video & Audio Input	HDMI 2.0 (HDCP 2.2) × 1
    Video & Audio Output	Speaker (8Ω 5 W) × 2
    Network Interface	RJ45 × 1, Wi-Fi (2.4G/5G, 802.11 a/b/g/n/ac/ax) × 1, RS232 in × 1, RS232 out × 1
    Data Transmission Interface	USB 2.0 × 1, USB 3.0 × 1, BT 5.4 × 1
    Power
    Input Voltage	100 to 240 VAC, 50/60 Hz
    Standby Consumption	≤ 0.5 W
    Power Consumption	108 W (typ), 155 W (max)
    Working Environment
    Working Temperature	0 °C to 40 °C (32 °F to 104 °F)
    Working Humidity	10% to 80% RH (Condensation)
    Storage Temperature	-20 °C to 60 °C (-4 °F to 140 °F)
    Storage Humidity	10% to 90% RH (Condensation)
    General
    Mounting Type	Floor standing

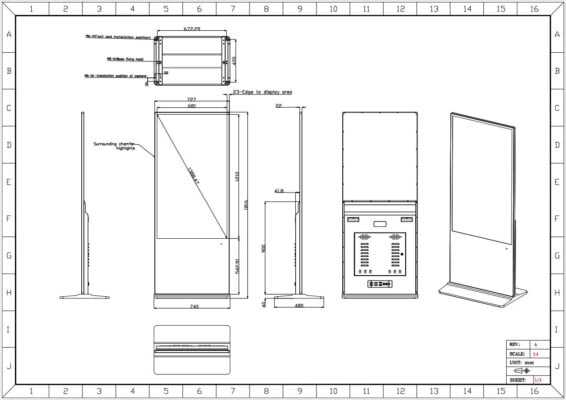

    Product Dimensions (W × H × D)	727 (W) mm × 1816 (H) mm × 63.8 (D) mm (With Stand) 727 (W) mm × 1816 (H) mm × 22 (D) mm (Without Stand)
    Package Dimensions (W × H × D)	840 (W) mm × 1895 (H) mm × 155 (D) mm
    Net Weight	42.7 kg
    Gross Weight	47.7 kg
    Packing List	Digital signage × 1, stand × 1, power cord × 1, remote control × 1, user manual × 1, quick start guide × 1, Regulation Compliance and Safety Information × 1, stand fixed with M8 screw × 6, key × 2, foot pad × 4, energy efficiency label × 1

• Physical Interface

  Interface	Description	Interface	Description
  LAN	100M/1000M Ethernet interface	HDMI 1	HDMI digital signal input interface
  RS232 OUT	RS232 control out	RS232 IN	RS232 control in
  USB3.0	USB 3.0 interface	USB3.2	USB 2.0 interface

•
•

• Available Model

  DS-D6055UT-D/S

•
