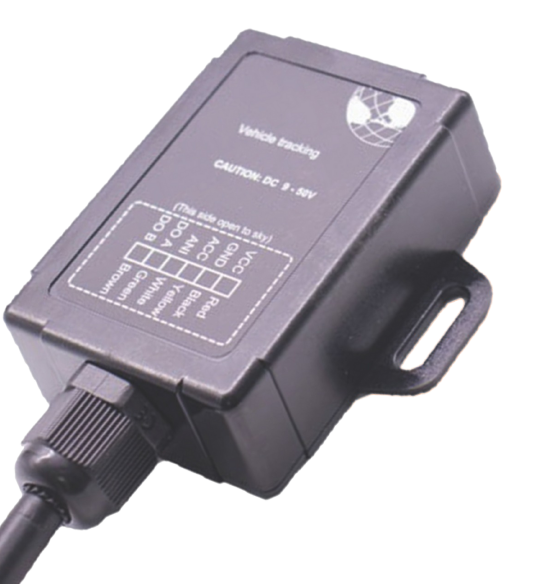

Entry-level GPS tracking device for any vehicle, with low power consumption and easy installation. Helios M is waterproof and compact, perfect for fleet management and motorcycles.

It's part of the Helios tracking platform, offering customized event detection, telemetry recording, geofencing, towing alerts and much more.

Use of our Tracking platformwww.advancedtracking.net

• Customized event detection
• Compact in size and easy to conceal
• Very low energy consumption
• Event configuration, alert destination (SMS, E-mail), calendar and frequency
• Towing alert
• Maps of the world, detailed down to street level
• Geofencing alerts if your vehicle has entered/exited a specified area at a specific timeGPS tracker technical specifications:
  Dimensions: 21H x 60D x 45W mm
  Weight: 120g
  Operating temperatures: -40° to +60°C
  Back-up batteries: Yes – Lithium
  Cellular network: Quad band
  Power supply: 9 to 50V

Entry-level GPS tracking device for any vehicle, with low power consumption design and easy installation. Helios M is waterproof and compact in size, perfect for fleet management and motorcycles. It is part of Helios tracker platform offering customized event detection, telemetry logging, Geofencing, tow alerts and much more.

Customized events through Helios Systems propriety

events generator

Compact in size and can be easily

hidden

Low power

consumption

Waterproof

Geo-fencing alerts

Tow alert

Worldwide

detailed maps

Personalize alerts via Text message and

demo שם משתמש

demo סיסמה

Technical Specifications

Power Power Voltage Range DC 9V-50V

Backup Battery (optional)

Type Power

Lithium-ion Polymer

3.75v,300 mAh

Cellular Communication

Location

GSM/GPRS (default) Optional Modems Antenna Type

Data Channels Protocol

Type

Time to First Fix (TTFF) Positioning Accuracy

Antenna Type

Quaad Bands (850,900,1800,1900) UMTS/HSPA+

Built-in (concealed) SMS & TCP/IP

Propriety – encryped

GPS, GLONASS (optional) 1 sec (hot start)

2.5m CEP (50%)

Velocity: 0.2m/s Built-in (concealed)

I/Os

Digital Inputs Digital Outputs

Max 1

Max 2

Environmental

Operating Temp Storage Temp Humidity

40°C (-40°F) to +60°C (140°F)

-40°C (-40°F) to +85°C (185°F)

Max 90%

COMM Port

Type

Speed

Micro USB

115,200bps (default)

Dimensions

Size

Weight

21h x 60W x 45L (mm)

0.82H x 2.36W x 2. 24L (inch)

120 (grams) 4.23 (0z)
