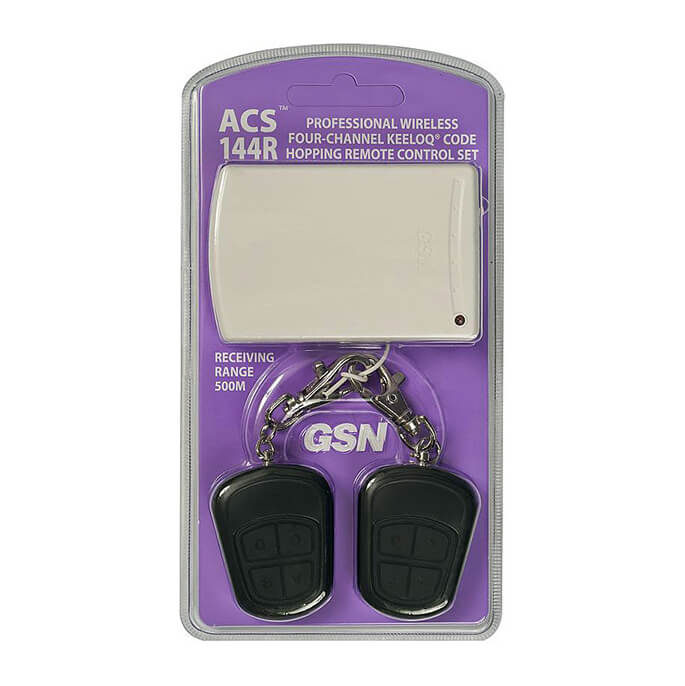

The wireless four-channel multifunctional receiver ACS-144R, operating in conjunction with two hand-held push-button transmitters, provides the remote control of any electronic equipment:
ELECTRICAL GATES
SLIDING DOORS
ELECTROMAGNETIC LOCKS
AUTOMATIC BARRIERS
ELECTRICAL CURTAINS
LIGHTING FIXTURES, etc.
The remote control sets may be used as a personal PANIC BUTTON
in security systems for creating any type of alarm.
FOUR INDEPENDENT CHANNEL
FIVE OPERATING MODES OF EACH RECEIVER CHANNEL:
1. PULSE MODE – 1SECOND
2. SWITCH ON PERIOD MODE (1 – 300 sec)
3. SWITCHING MODE (ON/OFF)
4. HOLD MODE (CONTINUOUS)
5. PANIC BUTTON MODE (SECURITY)
Receiving range in open space – up to 500 meters
KEELOQ® code hopping technology
Maximum quantity of remote controls learning the receiver – 330
Programming the ON/OFF period for the desired time from 1 to 300 sec
Unauthorized access protection (in "Panic Button" mode)
Last event memory: 30min (in "Panic Button" mode)
The alarm comes on when the electric power supply is disconnected (in "Panic Button" mode)
KEELOQ® CODE HOPPING TECHNOLOGY
The multifunctional remote control sets use KEELOQ® code hopping technology, ensuring the highest level of security by code combination programmable but read-protected. The combinations of different codes transmitted by remote controls prevent radio scanning and unauthorized access.
RECEIVING RANGE
The operating range of the hand-held remote controls depends on the mounting location of the receiver.
The various obstructions, the environmental factors, the radio-frequency and electromagnetic sources might influence the emission of radio-signal and as a result, might shorten the receiving range. For optimal radio-signal reception: mount the receiver at least 1.5 meter above the ground, as far as possible from any radio frequency and electromagnetic sources.
DOWNLOADS
| Power input | 12-16VDC; |
| Current consumption: | |
| Stand-by mode: | 15mA/12V; |
| Active mode: | 72mA/12V; |
| Receiving range in open space: | up to 500m; |
| Security code: | "KEELOQ"; |
| Operating frequency: | 433.92MHz ± 50kHz; |
| Radiated power: | ≤10mW; |
| Memory capacity: | 330 codes; |
| Alarm period in panic button mode: | 3sec; |
| Warm up period | 0.5sec; |
| Dry contact relay: | DC30V/1.0A; DC60V/0.3A; AC125V/0.5A; |
| Opening protection in panic button mode: | TAMPER SWITCH; |
| Last event memory in panic button mode: | 30 min; |
| Operating temperature range: | -20ºC +50ºC; |
| Storage temperature range: | -40ºC +80ºC; |
| Dimensions: | 85mm x 55mm x 20mm; |
| Weight: | 140gr. |
