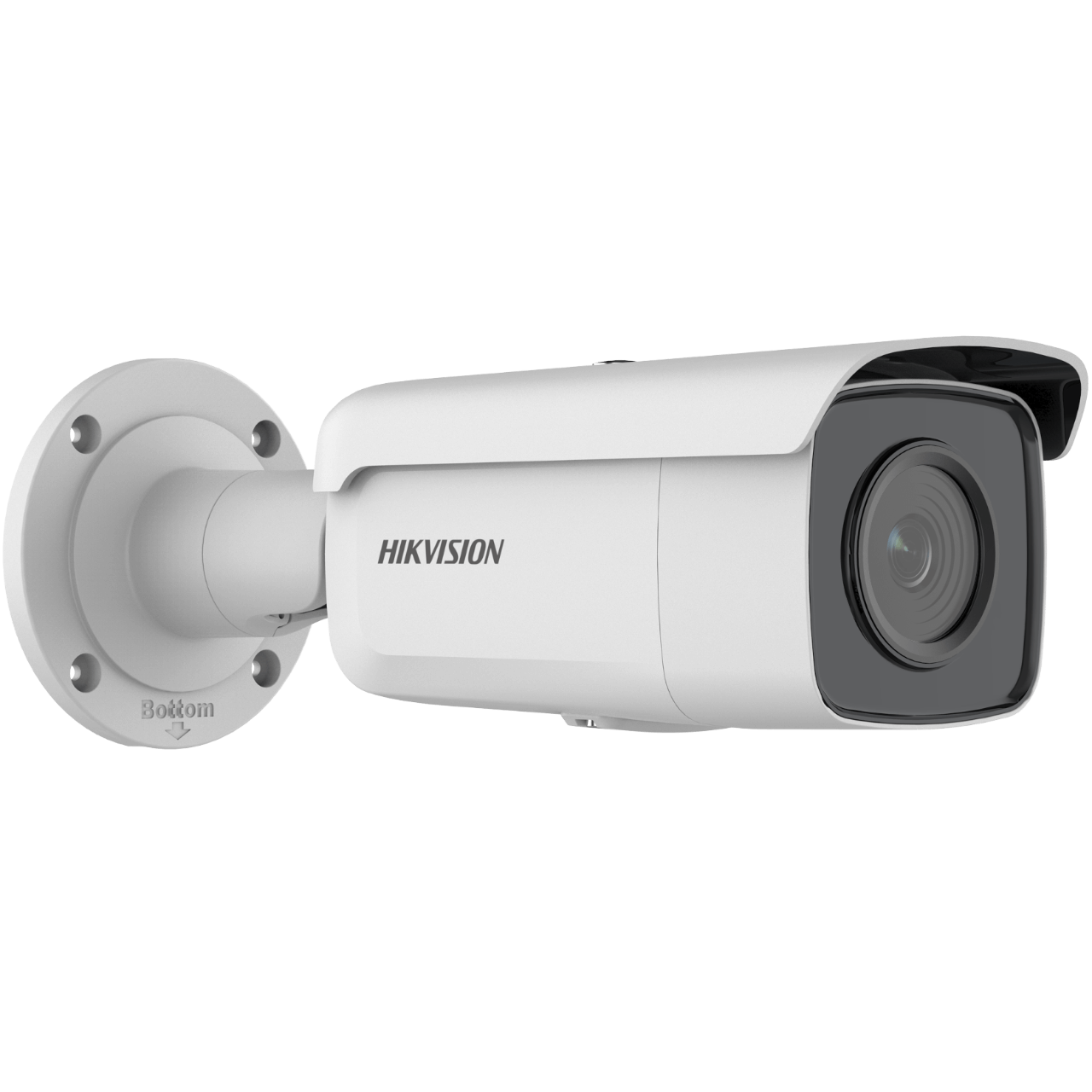

DS-2CD2T46G2-2I

4 MP AcuSense Fixed Bullet Network Camera New

• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Clear imaging against strong backlight due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focusing on human and vehicle targets classification based on deep learning
• Water and dust resistant (IP67)

Specification

Camera

Image Sensor1/3" Progressive Scan CMOS

Min. IlluminationColor: 0.003 Lux @ (F1.4, AGC ON)

Day & NightICR Cut

Shutter Speed1/3 s to 1/100,000 s

Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Slow ShutterYes

P/NP/N

Wide Dynamic Range120 dB

Lens

Focal Length & FOV

2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123°

4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 98°

6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62°

ApertureF1.4

Lens MountM12

Iris TypeFixed

DORI

DORI

2.8 mm: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m

4 mm: D: 80.0 m, O: 31.7 m, R: 16.0 m, I: 8.0 m

6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m

Illuminator

IR Range

2I: Up to 60 m

4I: Up to 80 m

IR Wavelength850 nm

Smart Supplement LightYes

Supplement Light TypeIR

Video

Max. Resolution2688 × 1520

Main Stream

50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.

Video Compression

Main Stream: H.265/H.264/H.265+/H.264+

Sub-Stream: H.265/H.264/MJPEG

Third Stream: H.265/H.264

*Third stream is supported under certain settings.

Video Bit Rate32 Kbps to 8 Mbps

H.264 TypeBaseline Profile/Main Profile/High Profile

H.265 TypeMain Profile

H.264+Main Stream supports

H.265+Main Stream supports

Bit Rate ControlCBR/VBR

Scalable Video Coding (SVC)H.265 and H.264 support

Region Of Interest (ROI)1 fixed region for main stream and sub-stream

Network

Simultaneous Live ViewUp to 6 channels

APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK

ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP

User/HostUp to 32 users. 3 user levels: administrator, operator and user

SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Network Storage

MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Together with high-end Hikvision memory card, memory card encryption and health detection are supported

ClientiVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+


SNR≥ 52 dB

Day/Night SwitchDay, Night, Auto, Schedule

Image EnhancementBLC, HLC, 3D DNR

Image Parameters SwitchYes

Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

On-Board StorageBuilt-in micro SD slot, up to 256 GB

Hardware ResetYes

Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception

Smart EventScene change detection

Deep Learning Function

Face CaptureYes

Perimeter ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection

General

Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, reverse polarity protection

PoE: 802.3af, class 3

Power Consumption And Current

2I:

12 VDC, 0.63 A, max. 7.5 W

PoE: (802.3af, 36 V to 57 V), 0.25 A to 0.16 A, max. 9 W

4I:

12 VDC, 0.88 A, max. 10.5 W

PoE: (802.3af, 36 V to 57 V), 0.34 A to 0.21 A, max. 12 W

Power InterfaceØ5.5 mm coaxial power plug

Camera DimensionØ105 × 289.5 mm (4.1" × 11.4")

Package Dimension386 × 156 × 155 mm (15.2" × 6.1" × 6.1")

Camera WeightApprox. 1075 g (2.4 lb.)

With Package WeightApprox. 1584 g (3.5 lb.)

Linkage MethodUpload to NAS/memory card/FTP, notify surveillance center, trigger record, trigger capture, send email

Web Client Language

33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General FunctionAnti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via email, pixel counter

Software ResetYes

Firmware VersionV5.5.111

Approval

EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 + A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 60950-1);

CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013);

CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013);

LOA (IEC/EN 60950-1)

EnvironmentCE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)

ProtectionIP67 (IEC 60529-2013)
