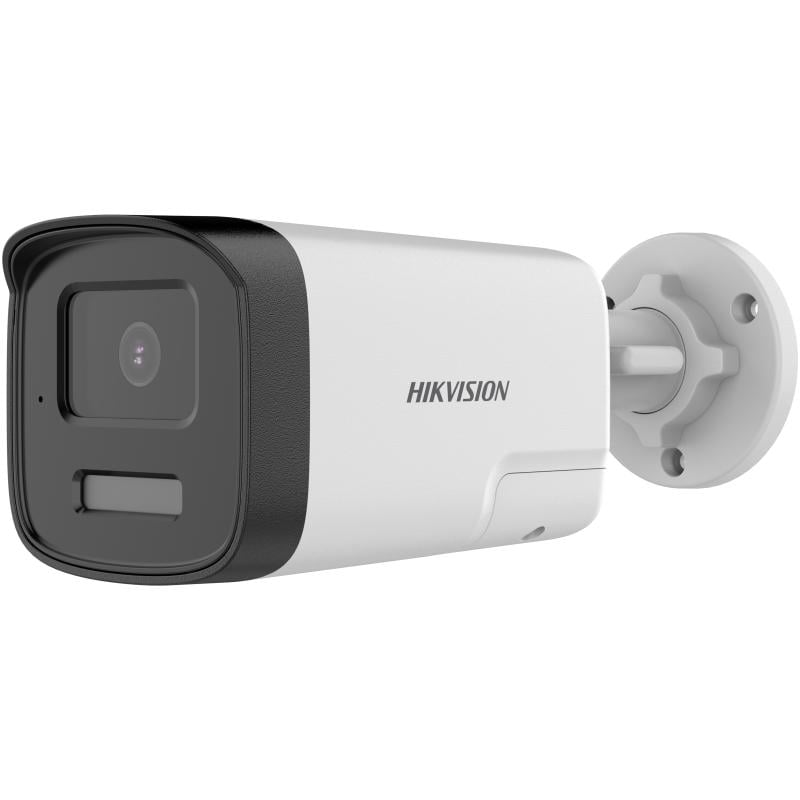

DS-2CE17U0T-LXTS – 4K Two Way Audio & Siren Fixed Bullet Camera

Camera

• Image Sensor4K CMOS
• Max. Resolution3840 (H) × 2160 (V)
• Min. Illumination0.01 Lux @(F1.6, AGC ON), 0 Lux with White Light
• Shutter TimePAL: 1/12.5 s to 1/50,000 s,NTSC: 1/15 s to 1/50,000 s
• Day & NightICR
• Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
• Signal SystemPAL/NTSC

Lens

• Lens Type2.8 mm, 3.6 mm fixed lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 105°, vertical FOV: 62°, diagonal FOV: 134°;

  3.6 mm, horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°

• Lens MountM12

Microphone

• Pickup DistanceIn a radius of up to 5 m
• Amount1

Speaker

• Rated Power2 W
• Speaker RangeIn a radius of up to 5 m

Illuminator

• Supplement Light TypeSmart, IR, White Light
• Supplement Light RangeIR: Up to 40 m, White Light: Up to 40 m


• Image Settings

  Anti-banding,

  Brightness,

  Sharpness,

  Smart IR

• Frame RateTVI: 8 MP @12.5 fps/15 fps, 3K@20 fps/25 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
• Day/Night ModeAuto/Color
• Wide Dynamic Range (WDR)Digital WDR
• Image Enhancement

  DWDR,

  BLC,

  HLC,

  Global

• Noise Reduction2D DNR
• White Balance

  Auto,

  Manual

Audio

• Audio FunctionEcho Cancellation, AI Noise Reduction, Automatic Gain Control

Interface

• Video Output1 HD analog output
• AlarmFlashing Light Alarm (Red & Blue)

General

• Power

  12 VDC ± 25%, max. 9.7 W,

  *You are recommended to use one power adapter to supply the power for one camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required.

• MaterialMain body: Metal; Enclosure: Plastic
• Dimension211 mm × 83.5 mm × 80.7 mm (8.31" × 3.29" × 3.18")
• Approx. 445 g (0.97 lb.)
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
• CommunicationHIKVISION-C
• LanguageEnglish

Approval

• ProtectionIP67
