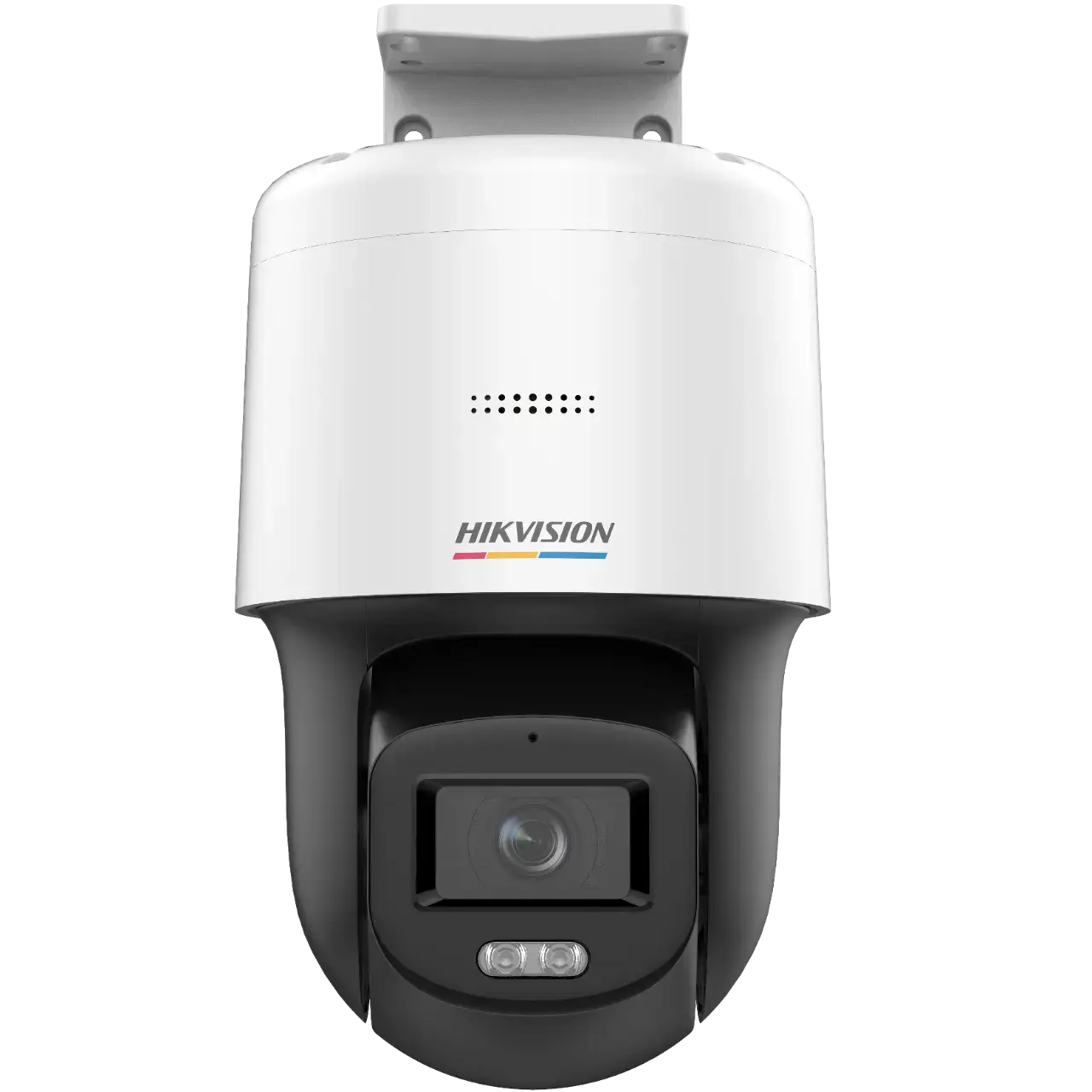

Hikvision DS-2DE2C400SCG-E – 4MP Fixed Outdoor ColorVu PT Network Camera

Camera

• DS-2DE2C400SCG-E camera offers Image Sensor1/1.8" Progressive Scan CMOS
• Max. Resolution2560 × 1440
• Min. IlluminationColor: 0.001 Lux @(F1.0, AGC ON), 0 Lux with Light

Lens

• Focal Length2.8 mm/4 mm
• FOV

  2.8 mm, horizontal FOV 105.7°, vertical FOV 57.3°, diagonal FOV 124.9°

  4 mm, horizontal FOV 88.7°, vertical FOV 44.7°, diagonal FOV 107.5°

• ApertureF1.0

Illuminator

• Supplement Light TypeWhite Light
• Supplement Light RangeWhite Light Distance: up to 30 m
• Smart Supplement LightYes

PTZ

• DS-2DE2C400SCG-E camera by hikvision also supports Movement Range (Pan)0° to 340°
• Movement Range (Tilt)-5° to 105°
• Pan SpeedPan speed: configurable from 4° to 21°/s
• Tilt SpeedTilt speed: configurable from 4° to 19°/s

Video

• Video CompressionH.265, H.264, MJPEG
• H.264 TypeBaseline Profile, Main Profile, High Profile
• H.265 TypeMain Profile
• Main Stream

  50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Video Bit Rate32 Kbps to 8 Mbps

Audio

• DS-2DE2C400SCG-E camera supports Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC-LC/PCM
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate8 kHz/16 kHz
• Environment Noise FilteringYes

Network

• DS-2DE2C400SCG-E by also supports Network Protocols: IPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
• APIOpen Network Video Interface, ISAPI, SDK


• Image SettingsSaturation, brightness, contrast, sharpness
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC, HLC, 3D DNR

Interface

• DS-2DE2C400SCG-E by hikvision connects to the system through Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• Built-In MicrophoneYes
• Built-In SpeakerYes
• ResetYes

Event

• Basic EventMotion detection, video tampering alarm, exception
• Alarm LinkageUpload to FTP, notify surveillance center, send email, upload to memory card

• General
• Operating Condition

  With supplement light on: -30 ℃ to 40 ℃. Humidity 95% or less (non-condensing)

  With supplement light off: -30 ℃ to 50 ℃. Humidity 95% or less (non-condensing)

General

• FunctionMirror, password protection, watermark
• Power

  12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection

  PoE: 802.3af, 36 V to 57 V, 0.2 A to 0.3 A, max. 10 W

• Dimensions

  Camera dimension: 162 mm × 120 mm × 234.2 mm (6.4" × 4.7" × 9.2")

  Package dimension: 205 mm × 167 mm × 289 mm (8.1 × 6.6" × 11.4")"

• Weight

  Camera weight: 780 g (1.7 lb.)

  With package weight: 1280 g (2.8 lb.)

Approval

• EMC

  FCC: 47 CFR Part 15, Subpart B;

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014;

  IC: ICES-003: Issue 7

• ProtectionIP66 (IEC 60529-2013)
