DS-3WF02C-5AC/O לינק P2P/P2MP מקצועי להתקנות חוץ מרחק שידור עד 5KM פורטים גיגה רוחב פס – 867Mbps במוד P2MP מומלץ לחבר עד 3 יח' Rx ליחידת Tx אחת יכול לשמש גם כ AP חיצוני מנוהל במקצבי WIFI5 AC Wave2 המחיר ליח' אחת

5Ghz 867Mbps 5km Outdoor Wireless CPE

• All gigabit LAN ports
• TDMA supported
• Quick match through DIP switch
• Visualized topology management
• Up to 5 km wireless transmission distance

• Wireless Parameter
• Max. Transmission Rate Of Air Interface≤ 867 Mbps
• Wireless StandardIEEE 802.11/a/n/ac
• Working Frequency Band

  5150 to 5250 MHz

  5250 to 5350 MHz (DFS)

  5470 to 5725 MHz (DFS)

  5725 to 5850 MHz

  (Note: Available channel may vary with local regulations.)

• Transmitting Power22 dBm (Note: Transmitting power may vary with local regulations.)
• Receiving Sensitivity-58 ± 2 dBm@AC80 -MCS9; -84 ± 2 dBm@AC80 -MCS0
• Antenna Gain12 dBi
• Antenna AngleBeamwidth [3dB] (35°± 5°)

• Network Parameters

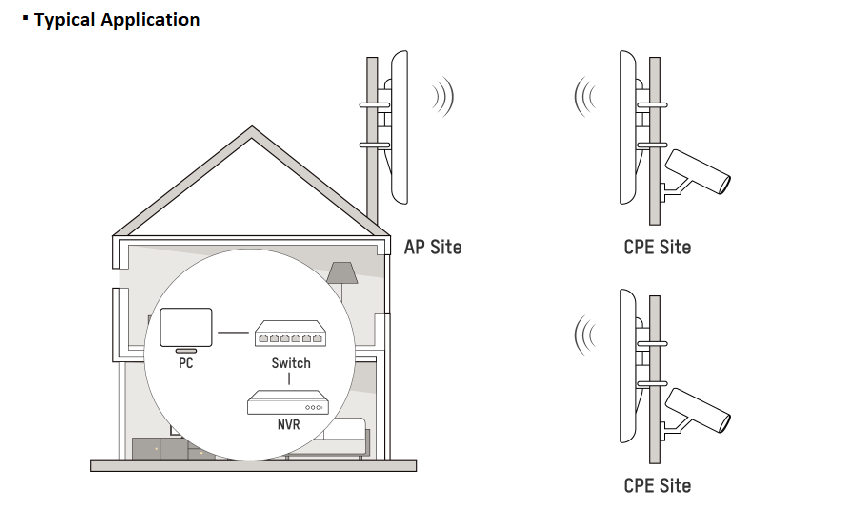

• Networking ModePoint to point: Support up to 4-ch IPC (2MP) in Max. 5 KM distance and Max. 20 Mbps bandwidth,Point to point: Support up to 40-ch IPC (2MP) in Max. 1 KM distance and Max. 200 Mbps bandwidth,Point to multi-point: Support up to 16-ch IPC (2MP) in Max. 1 KM distance and Max. 80 Mbps bandwidth within 30°, Max. 1 to 8 PTMP connection

• Hardware Parameter
• Port Numbers2 × Gigabit RJ45 ports
• LED IndicatorPower indicator, LAN indicator, signal intensity indicator
• ResetHardware resetting button
• Power Supply12 VDC/1 A Passive PoE; 12 VDC, 1 A

• Software Function
• Application FunctionTDMA, DFS, TPC,IFM,IPM
• Channel Width20/40/80 MHz
• Channel SelectionAuto/manual selection
• Network ProtocolNTP (network time synchronization), SADP (auto search for IP address), HTTPS (web management), SSH (debugging)
• Security ModeWPA2-PSK
• Security MechanismWireless network name hidden
• Management MethodWeb, HCP
• UpgradeWeb, iVMS-4200
• System LogSyslog, control center information

• General
• Product Dimensions (W × H × D)92 mm × 187 mm × 58 mm (3.62" × 7.36" × 2.28")
• Package Dimensions (W × H × D)132 mm × 228 mm × 91 mm (5.19" × 8.97" × 3.58")
• Net Weight0.307 kg (0.677 lb)
• Gross Weight0.807 kg (1.779 lb)
• Packing ListWireless bridge × 1, power adapter (12 VDC, 1 A) × 1, 1000 MB PoE injector × 1, binding tape × 2, quick start guide × 1
• Packing MethodSingle unit packing
• Working Temperature-30°C to 70°C (-22°F to 158°F)
• Working Humidity5% to 95% (no condensation)
• Storage Temperature-40°C to 85°C (-40°F to 185°F)
• Storage Humidity5% to 95% (no condensation)
• Installation ModePole mounting
• Power Consumption2.65 W for typical (1-ch 2MP IPC), Max. 4.5 W

• Approval
• EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020); IC (ICES-003: Issue 7:2020); RCM (AS/NZS CISPR 32: 2015)
• SafetyUL (UL 60950-1); CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 62368-1: 2014+A11: 2017)
• ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
• RadioEN 301 893; EN 300 440; EN 62311; EN 301 489-3; EN 301 489-17; FCC Part 15.247
