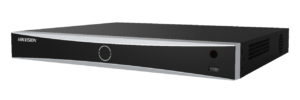

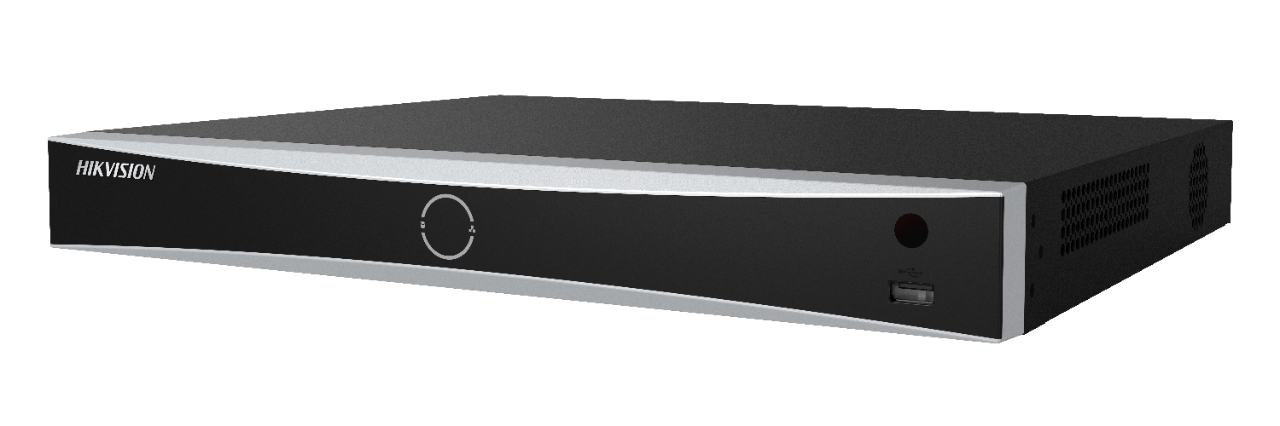

Hikvision DS-7608NXI-I2/8P/S – 8-ch 1U 8 POE AcuSense 4K NVR

DS-7608NXI-I2/8P/S – 8-ch 1U 8 POE AcuSense 4K Network Video Recorder

• Hikvision's DS-7608NXI-I2/8P/S NVR supports H.265+/H.265/H.264+/H.264 video formats
• Intelligent analytics based on deep learning algorithm
• Up to 4-ch perimeter protection
• Up to 1-ch facial recognition for video stream
• Up to 4-ch facial recognition for face picture
• Up to 8-ch IP camera inputs
• Up to 16-ch 1080p decoding capability

Specification

Facial Recognition

• DS-7608NXI-I2/8P/S comes with Face Picture Library Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB)
• Face Picture Comparison4-ch face picture comparison alarm
• Facial Detection And AnalyticsFace picture comparison, human face capture, face picture search
• Facial Detection And Analytics Performance1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)

Perimeter Protection

• Human/Vehicle AnalysisUp to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm

Video And Audio

• IP Video Input: 8
• Incoming Bandwidth80 Mbps
• Outgoing Bandwidth256 Mbps
• DS-7608NXI-I2/8P/S also supports HDMI Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Video Output ModeHDMI/VGA independent output
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding

• Decoding FormatH.265,H.265+,H.264,H.264+,MPEG4
• Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Playback ModeNormal/Smart, Event, Tag, Eternal File
• Synchronous Playback8-ch
• Live View Window Division1/4/6/8/9/16
• Aux Port Window Division1/4/6/8/9/16
• Decoding Capability8-ch @ 1080p (30 fps)
• Audio CompressionG.711ulaw,G.711alaw,G.722,G.726,MP2L2

Network

• Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

• Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power≤ 120W
• StandardIEEE 802.3 af/at

Auxiliary Interface

• SATA2 SATA interfaces
• CapacityUp to 8 TB capacity for each disk
• Serial InterfaceRS-485 (half-duplex), RS-232, Keyboard
• Alarm In/Out4/1
• USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

General

• Power Supply≤ 180 W
• Consumption≤ 15W
• Working Temperature-10℃～＋55℃
• Working Humidity10％～90％
• Chassis1U
• DS-7608NXI-I2/8P/S Dimensions are:- (W × D × H)385 × 315 ×52 mm ( 11.6"× 9.5" × 1.6")
• ≤ 3 kg (6.6 lb)
