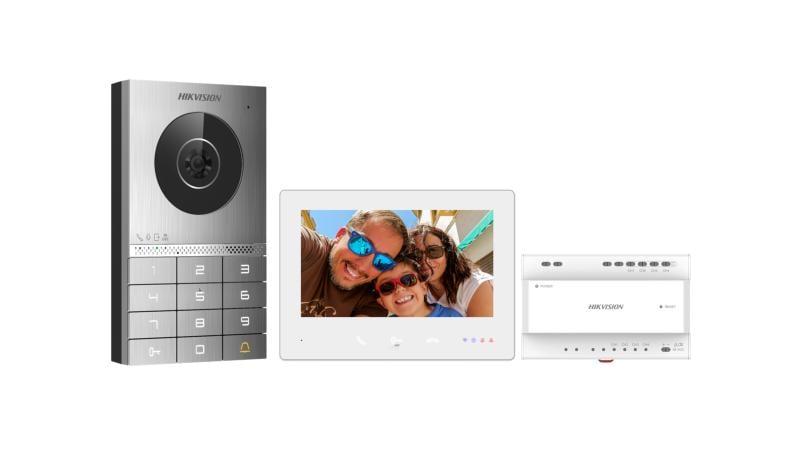

קיט אינטרקום HD לווילות בטכנולוגיית 2 גידים – Hikvision DS-KIS706EY

Door station/System parameters

• ProcessorEmbedded Processor
• ROM4 GB
• RAM256 MB
• Operation systemEmbedded Linux operation system

Door station/Screen parameters

• Screen sizeNA
• ResolutionNA
• TypeNA
• Operation methodNA

Door station/Video parameters

• Supplement lightSupplement light Low illumination, IR supplement lights
• Resolution2MP
• Lens1
• Wide dynamic range (WDR)Support
• FOVHorizontal: 135°, Vertical: 85°
• Video compression standardH.264

Door station/Audio parameters

• Audio inputBuilt-in omnidirectional microphone
• Audio outputBuilt-in loudspeaker
• Volume adjustmentAdjustable
• Audio compression standardG.711 U, G.726
• Audio compression bitrate64 Kps
• Audio qualityNoise suppression and echo cancellation

Door station/Capacity parameters

• Linked indoor station capacityMax.400
• Sub door station capacity16

Door station/Network parameters

• Wireless network10/100 Mbps self-adaptive through 2-wire interface
• Wi-FiOnly AP mode for configuration

Door station/Device interfaces

• RS-4851
• Lock control2 (1 relay, max to 30 VDC, 2 A；1 DC pulse，20V 4A impulsive，300 mA holding current，30 ohm max )
• Exit button1
• Door contact input1
• Alarm input2（supports Exit button or Door contact input）
• Power supply input12VDC input
• TAMPER1
• Debugging port1
• Two-Wire1
• DIP Switch6 decimal DIP switch

Door station/General

• Button12
• Indicator4 LED lights(Opening door、Calling、Intercom、In use）
• Power supply48V，Powered by distributor DS-KAD7060EY or 12VDC
• Power consumption≤ 6 W
• Working temperature-40° C to 60° C (-22° F to 140° F)
• Working humidity10% to 90%
• Application environmentOutdoor
• Dimension (W × H × D)165mm × 95 mm × 25 mm(6.5" × 3.7" × 0.98")
• InstallationSurface mounting
• Protective levelIP65 IK08
• LanguageEnglish, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese

Indoor station/System parameters

• Operation systemEmbedded Linux operation system
• RAM32 MB
• ROM128 MB
• ProcessorEmbedded processor

Indoor station/Display parameters

• TypeColorful TFT screen
• Operatiing methodCapacitive touch screen
• Screen size7-inch

Indoor station/Video parameter

• Video compression standard/
• Resolution1024 × 600
• Lens/
• Wide dynamic range (WDR)/
• FOV/

Indoor station/Audio parameters

• Audio input1 Built-in omnidirectional microphone
• Audio output1 Buit-in loudspeaker
• Audio qualityNoise suppression and echo cancellation
• Volume adjustmentAdjustable
• Audio compression standardG.711 U, G.711 A
• Audio compression bitrate64 Kbps

Indoor station/Capacity parameters

• Notice capacity200 captured pictures (with TF card)
• Linked indoor extensions capacity3

• Indoor station/Network parameters
• Wired network

  Two-wire network

• Wireless network2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
• Network protocol

  TCP/IP, SIP, RTSP

Indoor station/Device interfaces

• RS-485/
• Alarm input1
• Alarm output/
• Power supply input48V，powered by DS-KAD7060EY or DS-KAD7061EY
• TAMPER/
• TF cardMax to 128 G, SD 2.0 or lower version
• USB/
• Two-Wire2, 1 for input 1 for output
• DIP switch5 decimal DIP switch and 4 binary DIP switch

Indoor station/General

• Button3 Touch buttons (Answer, Unlock, Hang up)+1 Physical button（Reset）
• Power supply48V，Powered by DS-KAD7060EY or DS-KAD7061EY
• Power consumption≤ 5 W
• Working humidity10% to 90% (no-condensing)
• Working temperature-10 °C to 50 °C (14 °F to 122 °F)
• Dimension (W × H × D)190.2 mm × 138.2 mm × 20 mm (7.5" × 5.4" × 0.8")
• InstallationSurface mounting
• Application environmentIndoor
• Protective level/
• LanguageEnglish, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese

Video Audio Distributor/Interfaces

• Power interface48VDC
• Two-wire interfaceCH1-CH4 for Door station and Indoor station

Video Audio Distributor/General

• Power supply48VDC
• Power consumptionCH1＜30W，CH2＜30W，CH3＜30W，CH4＜30W；MAX Total 30W
• Working temperature-10 °C to 5 °C (14 °F to 131 °F)
• Working humidity10% to 90% (no-condensing)
• Dimension (W × H × D)143.7 mm × 92.4 mm × 65.9 mm (5.66" × 3.64" × 2.59")
• InstallationDIN rail installation
• Indicators

  4 Signal indicators;

  1 Power indicator
