EP7 חיבור אלחוטי של היחידה החיצונית פאנל סולארי וסוללה פנימית לאספקת חשמל

2MP
1920 × 1080
Security Bell
2.0 mm
126 × 56 × 44 mm (4.96 × 2.20 × 1.73 inch)

המחיר שלנו המחיר המקורי היה: ₪1,999.המחיר הנוכחי הוא: ₪1,600.
לפני מע"מ: ₪1,355.93 (20% הנחה)

מחיר משלוח: עד הבית/עסק UPS (עד 5 ק"ג): ₪50

מחיר כולל משלוח: ₪1,650

לבירור זמינות ומחיר

"חיבור אלחוטי של היחידה החיצונית
פאנל סולארי וסוללה פנימית לאספקת חשמל
80 מטר מרחק ועד 3 קירות בין היחידות
כניסה ע""י קודן וכרטיס RFID
חיבור אלחוטי ב WIFI של המסך הפנימי
זיהוי תנועה אנושית חכם
רזולוציית 2K
2.4G/5G Wi-Fi
עמיד במים
פתיחת שער ופתיחת נעילה
,תמיכה ב כרטיסי RFID
דיבור דו כיווני
ראיית לילה IR
מסך מגע בגודל 7 אינץ' עם תמיכה בעד 7 מסכים
שליטה מלאה דרך אפליקציית EZVIZ
רינגטונים מרובים
אחסון מקומי בטוח
כרטיס שם
"

*התמונות והתיאור באתר להמחשה בלבד. *מבוסס על AI ויכול לטעות (טל"ח). *יש להסתמך על מפרט הטכני הרשמי של היצרן.

תיאור

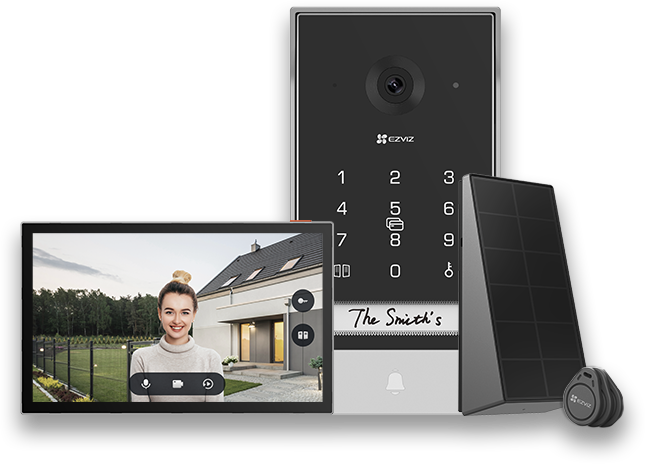

Smart Home Video Doorphone

Taking a step further with its groundbreaking video doorphones, EZVIZ now introduces the EP7, a new innovation of the series that comes with a built-in keypad, removable battery, compatible solar charging panel, and enhanced Wi-Fi stability. Completely removing the wiring need between the indoor monitor and the outdoor doorphone, this sleek kit seamlessly merges plenty of smart features to enhance home security, while adapting easy installation and power supply to reduce as much hassle as possible – changing the game of traditional video intercoms. Future-ready and eco-conscious, the EP7 elevates your front door with effortless sophistication.

Specifications
Model	CS-EP7
Outdoor Doorbell
Camera
Image Sensor	1/2.7" Progressive Scan CMOS (Supports low light sensitivity)
Lens	2.0 mm @ F2.2,viewing angle: 162° (Diagonal)
Day & Night	IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m)
Max. Resolution	2K, 2048 × 1296
DNR	2D / 3D DNR
Video Compression	H.265 / H.264
Frame Rate	Max: 15fps; Self-Adaptive during network transmission
Connection and Function
Open the door (Gate)	Support 2 wiring ports. 1-10m distance. The intercom panel provides a dry-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A
Unlock (Electric strike plate)	Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 0.8A, otherwise should do as user manual.
Door Open Methods	1.RFID badge unlock (CPU card × 3 pcs) 2.Password unlock 3.App remote unlock 4.Indoor display unlock
Outdoor Doorbell Interface
Audio Input	Built-in high-sensitivity microphone
Audio Output	Built-in high-power speaker
Doorbell Button	Supports 1 button.
Name Card	Supports handwritten. 3 cards stickers included (1 sticker already on the intercom panel).
Terminal	Two wiring ports to connect gate. Two wiring ports to connect electric strike plate. Two wiring ports to connect the solar panel.
Password Keypad	0-9 10-digial password keyboard; support 5 sets of 6-10 digital passwords; press the keypad to turn on the light, the light can be turn off
Network
Wi-Fi Standard	IEEE 802.11 AH
Frequency Range	904 M – 928 M (US), 865 M-867 M (EU)
Channel Bandwidth	8 M (U ), 2 M (EU)
Security	64 / 128 bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Wi-Fi HaLow Pairing	AP pairing
Max Transmission Distance for Intercom and monitor	Up to 350m in open area; up to 80m in two enclosed walls
General
Operation Conditions	-20°C to 60°C , Humidity 95% or less (non-condensing)
IP Grade	Waterproof IP65, with shield cover
Power Supply	Battery (7.3V), EZVIZ Doorbell Solar Panel
Battery Capacity	2600 mAh 7.3V (5200mAh 3.7V) rechargeable and detachable lithium battery 85 days at the rate of using 3 minutes per day, and open the electric strike plate 10 times
Product Dimension	175 × 86 × 34 mm
Interior Display
Info
Display size	7” touch screen
Resolution	1024 × 600
Interface
Audio Input	Built-in high-sensitivity microphone
Audio Output	Built-in high-power speaker
Button	Screen On / Off Button
Terminal	Two wiring ports to connect the power
Storage	Supports microSD card (Up to 512 GB)
Network Parameters
Interface Protocol	EZVIZ Cloud Proprietary Protocol
Protocol	EZVIZ Cloud Proprietary Protocol
Wi-Fi Parameters
Wi-Fi Standard	IEEE802.11b, 802.11g, 802.11n, 802.11ac
Frequency Range	2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz
Channel Bandwidth	Supports 20MHz
Security	64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate	11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps
Function
Multiple ringtones	Up to 20 ringtones
Functions	Live view, playback, two-way talk, video call
General
Operation Conditions	-10°C to 45°C, humidity 95% or less (non-condensing)
Size	180 × 111 × 15 mm
Power Supply	12-24VDC 1A power supply, adaptor (12V 1A included in package)
Power Consumption	8W, Max. 24W
Solar Panel
Performance Parameter
Power Voltage	8.1V max
Max. Power Current	240mA
Max. Power	1.2W
Operating Temperature	-20°C to 50°C
Product Dimension	126 × 59 × 44mm
IP Grade	IP65
General
Net Weight in Total	675g
Weight with Package	1865g
In the box
In the box	– Monitor
	– Wall Bracket for Monitor
	– Power Adapter for Monitor
	– Intercom Panel (Doorbell) with a Weather-proof Shield
	– Drill Template for Monitor
	– Drill Template for Intercom Panel
	– Screwdriver
	– Name Card (×3)
	– Badges (×3)
	– Screw Kit (×2)
	– Pin (×1)
	– Wires and Wire Connectors
	– Battery for Intercome Panel (× 1)
	– USB Cable for Battery (× 1)
	– Power Supply Jack Connector Cable (× 1)
	– Solar Panel (× 1)
	– Regulatory Information (×2)
	– Quick Start Guide
Certifications
Certifications	CE / REACH / WEEE / RoHS

מידע נוסף

Manufacturers	EZVIZ
Resolution	2MP
Max video resolution / screen size	1920 × 1080
Camera features	Security Bell
Lens	2.0 mm
Dimension	126 × 56 × 44 mm (4.96 × 2.20 × 1.73 inch)
