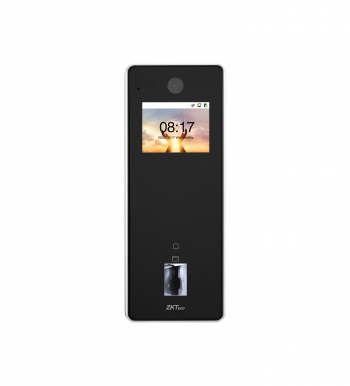

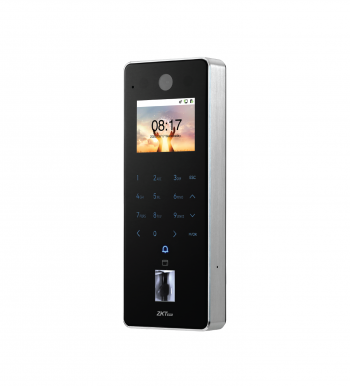

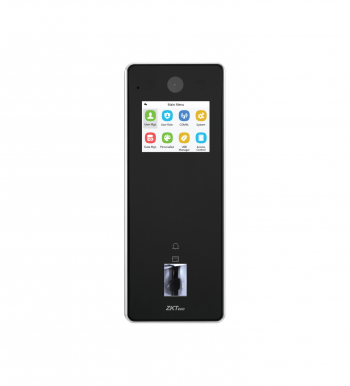

F35 from ZKTeco is a standalone access control terminal featuring a video intercom function. F35 adopts in-glass fingerprint verification, offering secure biometric authentication without a dedicated button.
F35 also supports multiple tech card modules for verification, and it can be a time and attendance terminal when integrated with the BioTime software.
Also, one of the notable features of the F35 is that it has a 2.4-inch color monitor, a 2MP camera, a built-in microphone, and speakers for one-way video intercom via indoor monitor with SIP protocol. F35 supports the ONVIF protocol; its firmware has AC push and can convert to TA push.
The aluminium alloy frame of the F35 offers robust protection, and it attained an IP65 protection rating, guaranteeing that this terminal operates in adverse weather.
| Model | F35 |
| Display | 2.4" TFT Color LCD Screen (720*1280) |
| Camera | 2MP; Field of View (Diagonal: 145° / Horizontal: 118° / Vertical: 62°) |
| Operation System | Linux |
| Hardware | CPU: 1.2GHz Dual Core; RAM: 256MB; ROM: 512MB; In-Glass Fingerprint (Z-ID); Speaker (1.0W); Omni-directional Mic |
| Authentication Method | Fingerprint / Card / Password (Physical Touch Keypad) |
| Capacity | Users: 10,000 | Cards: 10,000 | Fingerprints: 10,000 | Transactions: 500,000 |
| Biometric Performance | Speed: < 0.3s | FAR ≤ 0.0001% | FRR ≤ 0.01% (ZKFingerprint V10.0) |
| Card Support | Standard: ID (125kHz); Optional Multi-Tech: IC, DESFire EV1/EV2, FeliCa, Legic, HID Prox, HID iClass |
| Communication | TCP/IP, Wi-Fi (2.4GHz), Wiegand In/Out, RS485 |
| Access Control I/O | Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell, Aux I/O |
| Standard Functions | Webserver, ADMS, ONVIF (S, T, G, C, Q, A), Video Door Phone, Anti-Passback, HTTPS/SSH |
| Operating Environment | Temp: -5°C to 55°C | Humidity: 10% to 90% RH |
| Protection Rating | IP65 (Waterproof/Dustproof), IK04 (Vandal Resistant) |
| Dimensions & Build | 195 x 75 x 25.35 mm; Aluminum Alloy Housing; Net Weight: 0.52 Kg |
| Supported Software | ZKBio CVSecurity, BioTime, ZSmart App |
