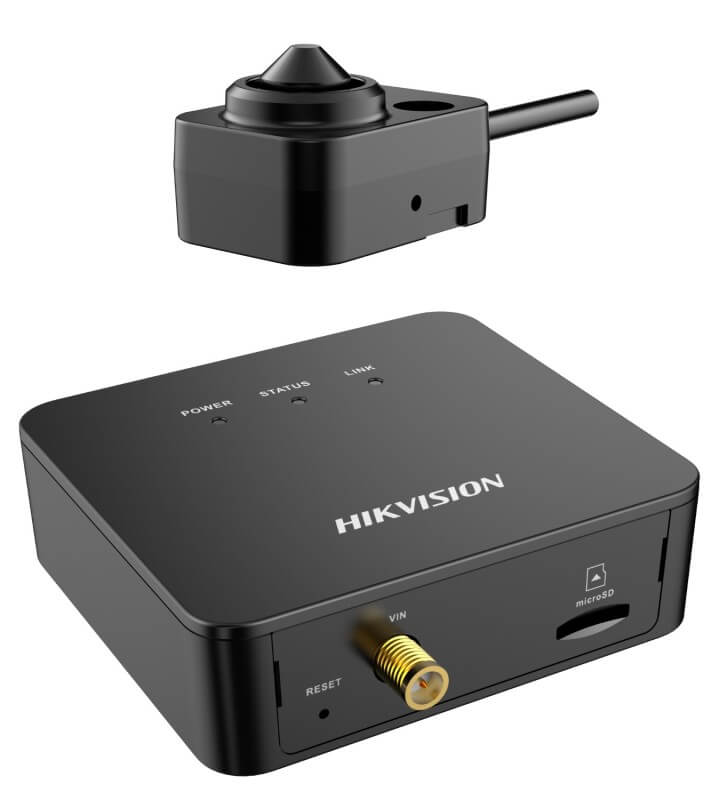

Hikvision DS-2CD6425G1-20-2m(2.8mm) – Separated Network Camera

Camera

• DS-2CD6425G1-20-2m(2.8mm) offers Image Sensor1/2.8" Progressive Scan CMOS
• Max. Resolution1920 × 1080
• Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON)
• Shutter Time1/3 s to 1/100,000 s

Lens

• Focal Length & FOV

  L10/L20 model:

  2.8 mm: horizontal FOV: 93.9°, vertical FOV: 51.7°, diagonal FOV: 109.3°

  3.7 mm: horizontal FOV: 75.5°, vertical FOV: 41.6°, diagonal FOV: 87.3°

  L30 model:

  2.8 mm: horizontal FOV: 107.8°, vertical FOV: 57.9°, diagonal FOV: 126.7°

  4 mm: horizontal FOV: 82.8°, vertical FOV: 45.1°, diagonal FOV: 98°

• Lens Mount

  L10/L20: Mini

  L30: M12

• Iris TypeFixed
• Aperture

  L10/L20:

  2.8 mm: F2.5

  3.7 mm: F2.5

  L30:

  2.8 mm: F2.0

  4 mm: F2

• DORI
• DORI

  L10/L20:

  2.8 mm: D: 47.9 m, O: 19 m, R: 9.6 m, I: 4.8 m

  3.7 mm: D: 59.3 m, O: 23.5 m, R: 11.9 m, I: 5.9 m

  L30:

  2.8 mm: D: 42.8 m, O: 17 m, R: 8.6 m, I: 4.3 m

  4 mm: D: 55.2 m, O: 21.9 m, R: 11 m, I: 5.5 m

Video

• Main Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)

  60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

• Third Stream

  50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240)

  60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240)

• Video Compression

  Main stream: H.265/H.264

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCVR/BVR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region of Interest (ROI)Support 1 fixed region for main stream

Audio

• DS-2CD6425G1-20-2m(2.8mm) supports Audio TypeMono
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC
• Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz
• Environment Noise FilteringYes

Network

• DS-2CD6425G1-20-2m(2.8mm) supports network ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• Simultaneous Live ViewUp to 15 channels
• APIOpen Network Video Interface, ISAPI, SDK, ISUP 5.0
• User/Host

  Up to 32 users

  3 level: administrator, operator, and user

• Network StorageNAS (NFS, SMB/CIFS)
• ClientiVMS-4200, Hik-Connect
• Web Browser

  Plug-in required live view: IE10, IE11

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+


• DS-2CD6425G1-20-2m(2.8mm) supports Image Parameters SwitchYes
• Image SettingsSaturation, brightness, contrast, and sharpness adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Schedule
• Wide Dynamic Range (WDR)120 dB
• Image EnhancementBLC, HLC, defog, 3D DNR
• Privacy MaskYes

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC card, up to 256 GB
• Audio1 input (line in), 1 output (line out)
• Alarm1 input, 1 output (max. 12 VDC, 30 mA)
• RS-4851 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Reset KeyYes

Event

• Basic EventMotion detection, video tampering alarm, exception (HDD full, HDD error, network disconncected), video quality diagnosis
• Smart Event

  Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection

  Audio exception detection, defocus detection, scene change detection

• LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning

General

• Power

  12 VDC ± 20%, 0.25 A, max. 3 W, two-core terminal block

  PoE: 802.3af, Type 1, Class 3, 36 V to 57 V,0.1 A to 0.07A, max. 3.65 W

• Dimension

  Main body: 77.5 mm × 69 mm × 26 mm (3.1" × 2.7\" × 1.0\")

  L10: Ø26 mm × 40 mm (Ø1.0 × 1.6\")

  L20: 37 mm × 26 mm × 25 mm (1.5 × 1.0\" × 1.0\")

  L30: Ø26 mm × 50 mm (Ø1.0 × 2.0\")"

• Package Dimension

  Kit/Main body: 254 mm × 164 mm × 130 mm (10" × 6.5\" × 5.1\")

  Camera: 219 mm × 139 mm × 100 mm (8.6 × 5.5\" × 3.9\")"

• Weight

  Main body: approx. 90 g (0.2 lb.)

  Camera: approx. 90 g (0.2 lb.)

• With Package Weight

  Main body: approx. 456 g (1.0 lb.)

  Package (with 8 m cable): approx. 991 g (2.2 lb.)

  Package (with 2 m cable): approx. 776 g (1.7 lb.)

  Camera (with 8 m cable): approx. 676 g (1.5 lb.)

  Camear (with 2 m cable): approx. 451 g (1.0 lb.)

• DS-2CD6425G1-20-2m(2.8mm) comes with Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language18 languages: English, Traditional Chinese, Russian, Turkish, Japanese, Korean, Thai, Vietnamese, Estonian, Bulgarian, Hungarian, Czech, Slovak, French, Italian, German, Spanish, Portuguese
• General FunctionOne-key reset, heartbeat, mirror, password protection, privacy mask, rotate, watermark, IP address filter
• Length of Lens Cable2 m (6.6 ft.) and 8 m (26.2 ft.) optional
• Approval
• EMC

  FCC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014);

  RCM (AS/NZS CISPR 32: 2015);

  IC (ICES-003: Issue 7);

  KC (KN 32: 2015, KN 35: 2015)

• Safety

  UL (UL 62368-1);

  CB (IEC 62368-1:2014+A11);

  CE-LVD (EN 62368-1:2014/A11:2017);

  BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005);

  LOA (IEC/EN 60950-1)

• Environment

  CE-RoHS (2011/65/EU);

  WEEE (2012/19/EU);

  Reach (Regulation (EC) No 1907/2006)
