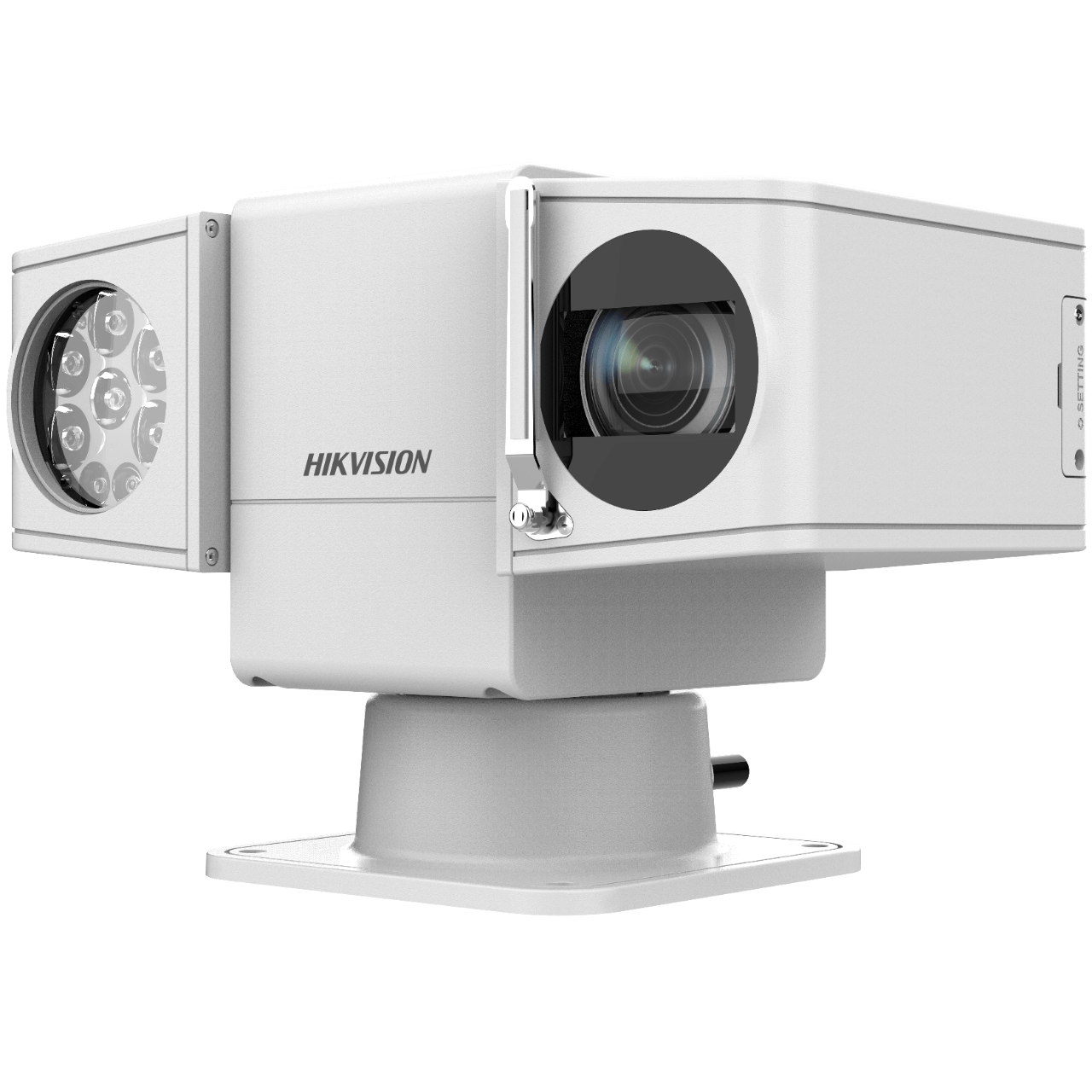

Hikvision DS-2DY5225IX-AE(T5) – 5-inch 2 MP 25X IR Network Positioning System

Camera

• DS-2DY5225IX-AE-T5 offers Image Sensor1/1.8＂ progressive scan CMOS
• Max. Resolution1920 × 1080
• Min. Illuminationcolor: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
• Shutter Speed1/1s~1/30000 s
• Day & NightICR
• Zoom25 × optical, 16 × digital
• Slow ShutterYes

Lens

• Focal Length5.9~147.5 mm，25 × optical
• FOV

  Horizontal FOV: 55.4° to 2.1° (wide-tele),

  Vertical FOV: 32.4° to1.2° (wide-tele),

  Diagonal FOV: 62° to 3.3° (wide-tele)

• FocusAuto/Semi-automatic/Manual
• ApertureF1.5
• Zoom Speedapprox. 4.8 s

Illuminator

• Supplement Light TypeIR
• Supplement Light Range250 m
• Smart Supplement LightYes

PTZ

• Movement Range (Pan)360° endless
• Movement Range (Tilt)From +90° to -90° (auto flip)
• Pan Speed

  Configurable, from 0.1°/s to 150°/s,

  Preset speed: 150°/s

• Tilt Speed

  Configurable, from 0.1°/s to 80°/s

  Preset Speed: 80°/s

• Proportional PanYes
• Presets300
• Preset FreezingYes
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans, record time over 10 minutes for each scan
• Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
• 3D PositioningYes
• PTZ Status DisplayYes
• Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
• Power-Off MemoryYes

Video

• Main Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

  60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

• Third Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

  60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

• Video Compression

  Main Stream: H.265+/H.265/H.264+/H.264

  Sub-stream: H.265/H.264/MJPEG

  Third Stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 16384 Kbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Scalable Video Coding (SVC)Support
• Region Of Interest (ROI)8 fixed regions for each stream

Audio

• DS-2DY5225IX-AE-T5 supports Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
• Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise FilteringYes

Network

• DS-2DY5225IX-AE-T5 also supports Network Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
• Simultaneous Live ViewUp to 20 channels
• APIOpen Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• User/HostUp to 32 users, 3 user levels: administrator, operator, and user
• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
• Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• ClientiVMS-4200, HikCentral Pro, Hik-Connect
• Web BrowserIE11, Chrome 57+, Firefox 52+, Safari 11+


• Image Parameters SwitchYes
• Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Schedule
• Wide Dynamic Range (WDR)120 dB WDR
• SNR≥52dB
• DefogDigital defog
• Image StabilizationEIS
• Image EnhancementBLC, HLC, 3D DNR
• Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
• Regional FocusYes
• Regional ExposureYes

Interface

• Ethernet Interface1 RJ45 10 M/100 M Ethernet
• On-Board Storagesupport microSD/microSDHC/microSDXC cards, up to 256 GB
• Audio1-ch audio input and 1-ch audio output
• Alarm7-ch alarm input and 2-ch alarm output
• RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• ResetYes

Event

• DS-2DY5225IX-AE-T5 by hikvision supports basic events like: Motion detection, video tampering alarm, exception, alarm input and output
• Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
• Alarm LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
• Smart TrackingManual tracking, Event tracking

• Deep Learning Function
• Face CaptureSupport detecting up to 10 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.

General

• Power

  24 VAC, 3 A, max. 45 W, including max. 1.6 W for heater and 10 W for IR

  36 VDC

  Hi-POE, 42.5~57 V| 1.41 A

• DimensionØ332 mm × 182 mm × 222 mm (Ø 13.07" × 7.17" × 8.74")
• Approx. 7.7 kg (16.98 lb.)
• MaterialADC12
• Operating ConditionTemperature: Outdoor: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 90%
• WiperYes

Approval

• ProtectionIP66, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
