ZKTeco developed a networked electronic delivery locker module, LockerPad-G4 Pro, offering a reliable, secure, and convenient locker system.
LockerPad-G4 Pro integrates with ZKBio CVSecurity and adopts multiple authentication methods, including facial recognition, and multi-tech card verification, to unlock the locker without a key, ensuring storage safety and enhancing convenience.

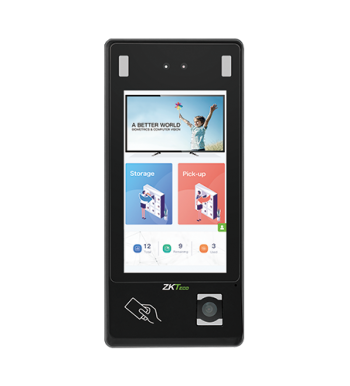

The LockerPad-G4 Pro embedded into a 7 inches colour touch screen display, creating a easy-to-manage self-service terminal for parcel and personal belongings storage. In addition, LockerPad-G4 Pro supports digital advertisement (image & video), which can drive foot traffic and sales effectively.
ZKTeco also provides an LCDP tool which is used for 3rd party applications integration. It includes simplified bottom hardware interface, algorithm interface and some upper business logic and configuration, which can make development more easier and more efficient.
Different types of devices in different modules with decentralized management.
As an unified security management platform, ZKBio CVSecurity can manage multiple lockers simultaneously. Locker, Attendance, Access control, Parking and other functional modules are integrated in a platform.
LockerPad-G4 Pro has a 7-inch touchscreen and supports digital advertisements placement and push notifications, which can improve foot trac and help achieve business goals.
The LockerPad-G4 Pro is energy ecient and adopts facial verification to unlock the cabinet, reducing stang costs and the cost of consumables such as printer paper.
ZKBio CVSecurity platform offers a user-centric and customizable locker management system. Currently, the LockerPad-G4 Pro controls the cabinet lock via a control board, and each LockerPad-G4 Pro can connect up to 8 control boards.
In addition, each control board contains 12 control ports, which can control a maximum of 12 cabinets. LockerPad-G4 Pro locker management system is accessible online through the web on a PC. The administratorcan control and arrange the usage of cabinets by assigning access rights to fixed or temporary users. The administrator can also view and collect real-time data on the use of cabinets, for example, the number of open or locked cabinets, available or occupied cabinets, and blocked or available cabinets.
Moreover, LockerPad-G4 Pro provides the cabinet unlock function in an emergency for safety checks. The administrator can open all the cabinets with one click in the operating system.
| Model | LockerPad-G4 Pro |
| Cabinet Capacity | 96 (Supports up to 8pcs Lock Control Boards via RS485) |
| User Capacity | Face: 10,000 (1:N) | Card: 10,000 | Transactions: 1,000,000 |
| Hardware & OS | 64bit Octa-core 1.8GHz CPU; 2G RAM / 16G ROM; Android 9.0 |
| Communication | TCP/IP, Wi-Fi, WLAN (2.4GHz), RS485, RS232, Wiegand I/O, USB, 4G (Optional) |
| Facial Recognition | ZKFace 5.6.2; Speed: Within 1s; Distance: 20cm to 50cm |
| Operating Environment | -20°C to 55°C (-4°F to 131°F); Humidity: 10% to 90% |
| Screen & Camera | 7-inch LCD Touch Screen (7201280); 2MP Binocular Camera |
| Dimensions | 264mm * 120mm * 51mm |
| Lock Control Board (Specifications) | |
| Outputs / Comm. | 12 Relay Outputs; RS485 Communication |
| Power Input | DC 12V, 1A~1.5A |
| ZKPSM050 (Power Supply) | |
| Output / Max Power | 12V 5A; 60W Max Power |
| Input Voltage | 90~264 VAC |
| ABS Plastic Cabinet & Lock | |
| Cabinet Build | Material: ABS Plastic; Door Panel: 26mm (36mm decorative) |
| Electronic Lock Life | Mechanical: ≥500k Times; Electromagnet: ≥1 Million Times |
Display |
7-inch LCD Touch Screen (720*1280 pixels) |
|---|---|
Dimensions |
264mm*120mm*51mm (9.69in*4.72in*2in) |
ROM |
|
נפח זכרון RAM |
2GB DDR3 |
Power Supply |
DC 12V, 1A~1.5A |
