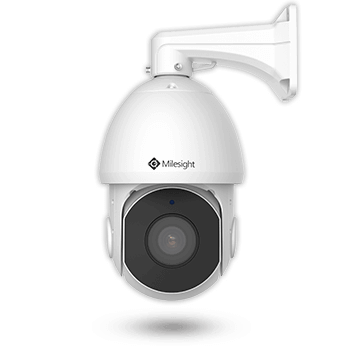

360° Coverage Secures Here and There
2/5MP · 23X/30X Optical Zoom · 140dB Super WDR · 0.002Lux Starlight · Smart IR II Technology · IP66 · IK10 Optional · PTZ Auto Tracking · 3D Positioning · Smart PTZ Motion Detection · 60fps · PoE
Milesight VCA with 10 detection modes provides advanced, accurate smart video analysis for Milesight network cameras, enabling the comprehensive surveillance function and quicker response to different monitoring scenes.
The Milesight Speed Dome Network Camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.
Milesight’s sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 140dB.
Milesight 23X/30X H.265+ Speed Dome Network Camera complies with PoE standard IEEE 802.3at, which will provide power to the camera while streaming video/audio/data over one single cable. It simplifies installation, greatly eliminates the need for time-consuming process and expertise and achieves a virtually hassle-free installation process.
Milesight 23X/30X H.265+ Speed Dome Network Camera is designed to extend user’s reach to the max with the fast [email protected]~F3.5 / [email protected] ~F4.0 lens. The 23X/30X optical zoom allows the user to zoom up to distant subjects while still maintaining the clarity, delivering high quality video over the entire zoom range.
Milesight 23X/30X H.265+ Speed Dome Network Camera delivers clear images up to 5MP High resolution by zooming in on objects at distance, providing users with ultra-high-definition video viewing experience.
The IR LEDs technology has been upgraded to provide videos with a viewing range of up to 200m. Four LEDs work as High Beam, two LEDs work as Mid Beam, while the other three as Low Beam for better image clarity and quality regardless of the object distance. Also, the Low Beam, Mid Beam and High Beam’s brightness can be adjusted manually or automatically on the basis of the zoom ratio.
With a sophisticated pan/tilt mechanism, Milesight 23X/30X H.265+ Speed Dome Network Camera provides fast, precise movement with endless 360° pan and 90° tilt. The user can easily control the lens position via mouse to monitor area of interest and set up to 255 preset positions for patrolling. There are up to 8 patrol routes and maximum 4 patterns of the manual operation paths (for Pan, Tilt, Zoom and Focus) which can be set as required. Moreover, the user is able to schedule specific PTZ tasks by date and time.
Once PTZ Auto Tracking function enabled, Milesight PTZ cameras could leverage motor mechanism to perform Pan/Tilt/Zoom to track the moving object automatically and adjust zoom status flexibly according to the object distance with the powerful optical zoom capability. Therefore, the target would be shown in the frame center and be zoomed to a proper size, achieving the smart, reliable and real-time video surveillance without any critical details missing.
The Smart PTZ Motion Detection function enables the user to monitor specified area clearly in a timely manner. When there is motion detected in a target area, Milesight 23X/30X H.265+ Speed Dome Network Camera will pan and tilt to the position of motion detected area automatically. Then zoom in to provide clear image for a duration of time. If the duration expires, the camera will resume its previous monitoring position and zoom level.
Milesight 23X/30X H.265+ Speed Dome Network Camera can be easily controlled via the use of a mouse which is truly user-friendly. Left click on any position of interest in the video image, and the position will right become the center of the current monitoring area. Use the left button of a mouse to drag a rectangle area, then the area will become the central area of monitoring with automatic zoom in or zoom out action. Rolling the mouse wheel up and down, the video image will be zoomed in and zoomed out immediately.
The weather-proof and vandal-proof capacity are the solid foundation to guarantee the stable and reliable operation of the network camera. Applied in Speed Dome Network Camera, the IP66-rated weather proofing and IK10-rated vandal proofing, which are the leading level of the industry, well protect the cameras against adverse impact to ensure the performance.
Adopting the completely new design, 23X/30X H.265+ Speed Dome Network Camera is born for its originality and elegance. The optimized structure is super chic and simple with the hiding of IR LEDs. And at the same time, whether wall mount or pendant mount, there are different accessories optional for the hassle-free installation.
Name2MP 23X H.265 Speed Dome Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, Color: 0.005Lux @F1.5, B/W: 0Lux with IR on
WDR140dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Digital Zoom16X
Focal Length5∼117mm, 23X Optical Zoom
Zoom SpeedApprox 6s(Optical Wide-Tele)
Field of ViewH60°∼H3°/D69°∼D4°/V35°∼V2°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance100/1500mm (Wide/Tele)
ApertureF1.5∼F3.5
Iris ControlAuto
Pan Range/Pan Speed360° endless/ Pan Manual Speed: 0.1°∼400°/s, Pan Preset Speed: 400°/s
Tilt Range/Tilt Speed0°∼90°(Auto Flip)/ Tilt Manual Speed: 0.1°∼320°/s, Tilt Preset Speed: 320°/s
Proportional ZoomSupport
Preset Quantity255
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Auto TrackingSupport
Power Off MemorySupport
Other FunctionAuto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Irradiation DistanceUp to 200m
Irradiation AngleAuto/Manual
Max. Image Resolution1920×1080
Primary Stream60fps@(1920×1080, 1280×960, 1280×720, 704×576)
Secondary Stream60fps@(704×576, 640×480, 640×360, 352×288, 320×240, 320×192, 320×180)
Tertiary Stream30fps@(1920×1080, 1280×720, 704×576, 640×480, 640×360, 320×240, 320×192, 320×180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
Working ConditionTemperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing)
Power SupplyPoE(802.3at)/ AC 24V/3A ±10%
Power Consumption13W MAX/ 25W MAX(With IR on)
Weather Proof/
HousingUp to IP66-rated for weather-resistant performance / Vandal-proof IK10-rated Metal Housing(Optional)
HeaterSupport
Dimensions/WeightΦ205mmX308mm/4Kg
Warranty2 Years/3 Years(Optional)
* Naming Convention
H – 30fps@5MP Series
R – High Frame Rate (60fps)
P – PoE Supported
B – H.265 Compression
