PC264T1 Dual-Spectrum PTZ Camera

מק"ט PC264T1 קטגוריה Thermal Explosion-Proof Camera תגית Bullet Cameras מותג: Raythink

מחיר משלוח: עד הבית/עסק UPS (עד 5 ק"ג): ₪50

*התמונות והתיאור באתר להמחשה בלבד. *מבוסס על AI ויכול לטעות (טל"ח). *יש להסתמך על מפרט הטכני הרשמי של היצרן.

תיאור

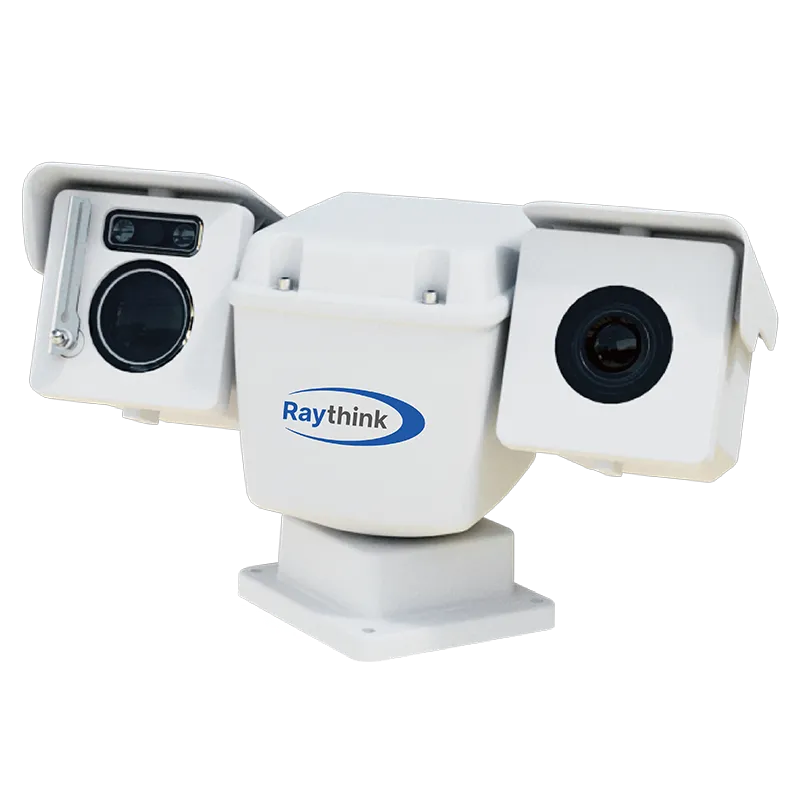

The PC2 Series Dual-Spectrum PTZ Camera is a medium-range temperature measurement and monitoring product that integrates infrared thermal imaging, an HD visible light camera, and an intelligent PTZ into one.
Equipped with intelligent functions like fire point detection, tripwire intrusion, and regional intrusion detection, the product also integrates sophisticated industrial temperature measurement and analysis tools for analyzing temperature data and triggering alarms. It is suitable for device temperature monitoring, factory area, and park monitoring, as well as robot routine inspection.

Adopting the latest 12μm uncooled infrared detectors, integrated with advanced infrared imaging algorithms for better image quality.

All-weather, 24/7 security monitoring with dual thermal&visible light imaging.

Measurement range from -20℃ to 550℃, accuracy ±2℃ or 2%.

Features an integrated intelligent fire detection algorithm for efficient and accurate monitoring, as well as reduced false alarms.

Support tripwire/intrusion detection, as well as intelligent detection of fire point.

Support ONVIF, provide SDK&demo for development; provide NVR and VMS software for application.

Thermal Module
Detector Type	VOx, uncooled FPA detectors
Spectral Range	8~14μm
NETD	≤40mK(@25°C, F#1.0, 25 Hz)
Resolution	640×512
Pixel Pitch	12μm
Focal Length	13mm/25mm
Optical Module
Sensor	4MP 1/1.8" Progressive Scan CMOS
Resolution	2688×1520
Focal Length	6.5~130mm, 20x
Image Function
Picture in Picture	Support
PTZ
Pan	360° continuous, 0.1°~100°/s
Tilt	-90°~+90°, 0.1°~60°/s
Preset	256
Scan mode	Preset/Pattern Scan/Patrol Scan/ Linear Scan/Panorama Scan
Wiper	wiper
Smart Function
Fire Detection	Support
VCA	Support Line Crossing & Intrusion detection
2-Way Audio	Support
Linkage Action	Video/ Snapshot/Email/Alarm output/sound and light alarm
System Interface
Power	DC 12V±25%
Network	1 RJ45 10M / 100M self-adaptive Ethernet port
Audio	1 in/1 out
Alarm	2 in/2 out
Storage	Micro SD memory (maximum 256G)
Reset	Support
Serial Port	1 channel RS485, can support Pelco protocol
General
Work Environment	-40℃~+70℃；<90%RH
Protection	IP66
Power Consumption	max. 30w
Dimenstion(mm)	358×166×203
Weight	≤5kg
More
Temperature Range	-20℃~+550℃
Temperature Accuracy	±2℃ or ±2%
Temperature Measurement	Support 4 temperature measurement rules (fullframe, point, line, area)
