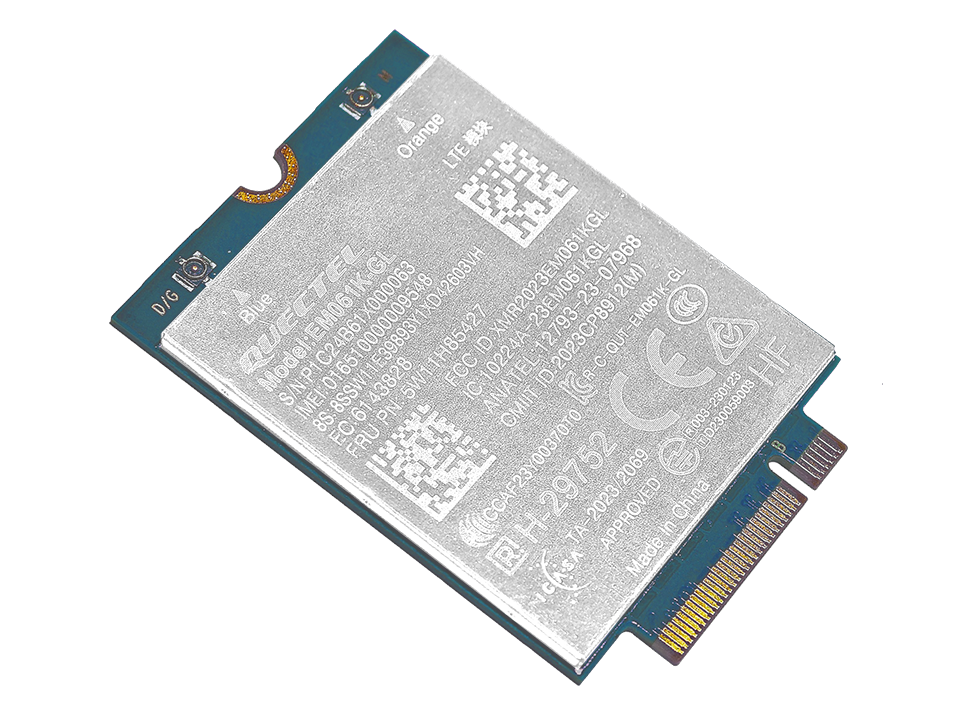

ThinkPad Quectel EM061K-GL LTE-A CAT6 M.2 WWAN Module

ThinkPad Quectel EM061K-GL LTE-A CAT6 M.2 WWAN Module is an LTE advanced category 6 module. This module supports a theoretical peak rate of 300 Mbps in the downlink and a theoretical peak data rate of 50Mbps in the uplink. Designed in M.2 form factor, the module facilitates customers' migration between different modules. In addition, it provides quicker, more accurate and more dependable positioning capability.

• LTE-A CAT6 module with M.2 form factor
• Built-in eSIM (optional), DSSA
• Worldwide LTE-A and UMTS/ HSPA+ coverage
• USB 2.0 interface
• Dimension: 30mm*42mm*2.3mm

Tech Specs

JAN
4582763354157
EAN
0195892103172
UPC
195892103172
Warranty Type
Customer Replaceable Unit (CRU)
Warranty Period
1 Year
Other Physical Specifications
Interface: M.2 Key-B
Other Operating Environment
Extended operating temperature: –40℃ to +85℃
Storage temperature: –40℃ to +90℃
Other Electrical Specifications
Antenna Connector: WWAN Antenna x 2
Protocol Stack: IPV4/IPV6 Firmware Update: USB
Maximum Relative Humidity (%)
95%
Minimum Relative Humidity (%)
5%
Maximum Operating Temperature
75℃
Minimum Operating Temperature
-25℃
Packed Weight
0.03kg
Packed Dimensions (L x D x H)
53*144*177
Package Type
Brown box
Hardware Requirements
USB2.0 M.2 Interface
Carriers
AT&T/ T-Mobile/ Verizon/ Vodafone/ EE/ Swisscom/ Deutsche Telekom/ Telefonica/ NTT Docomo/ KDDI/ Softbank/ CUCC
Agency Approvals
NCC*/ ANATEL*/ SRRC*/ NAL*/ CCC*/ CE*/ FCC*/ IC*/ RCM*/ PTCRB*/ GCF*/ UKCA*/ KC*/ JATE*/ TELEC*/ NBTC*/ IMDA*/ ICASA*IMDA*/ ICASA*
Shipment Group
WWAN module
Warranty poster
Product Weight
6.2g
Height
2.3mm
Depth
30mm
Length
42mm
Voltage
3.135––4.4 V, typ. 3.3
Supported Band
LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
LTE-TDD:B34/B38/B39/B40/B41
WCDMA:B1/B2/B3/B4/B5/B6/B8/B19
Supported OS
Windows 11
Brand
ThinkPad
