"1. Thermal: 256*192 lens: 3.5mm
2. Visible: 4Mp lens: 4mm
3. Support IVS, Fire Detection & Alarm, Cold & Hot Spot Trace,Human & Vehicle Classification,Smoking Detection,Call Detection.
4. Support SD card, max 256G
5. Audio: 1 in/1 out Alarm: 1 in /1 out
6. Smart alarm linkage with white light & loudspeaker"

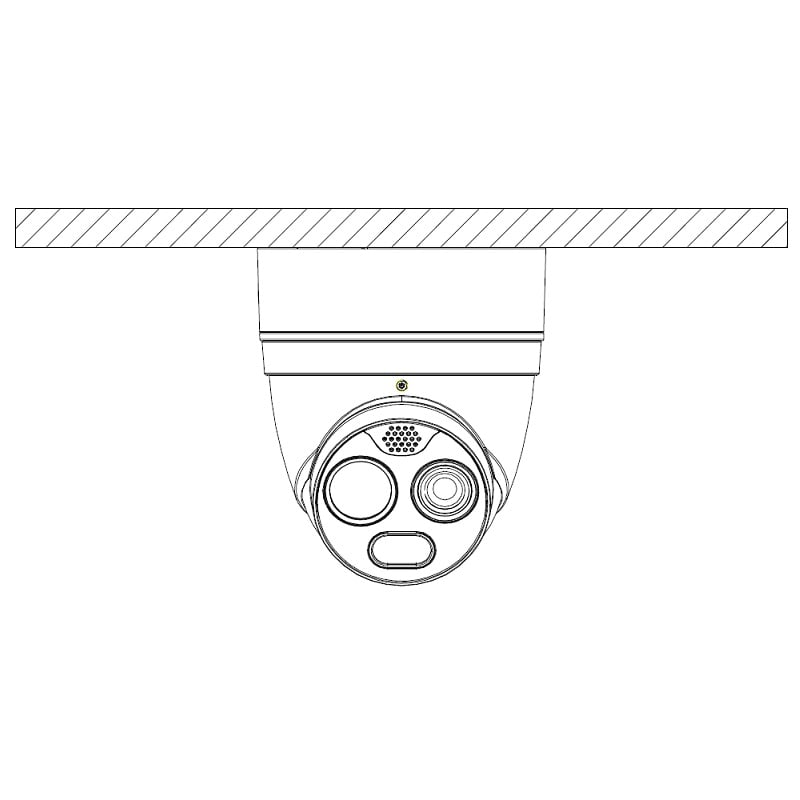

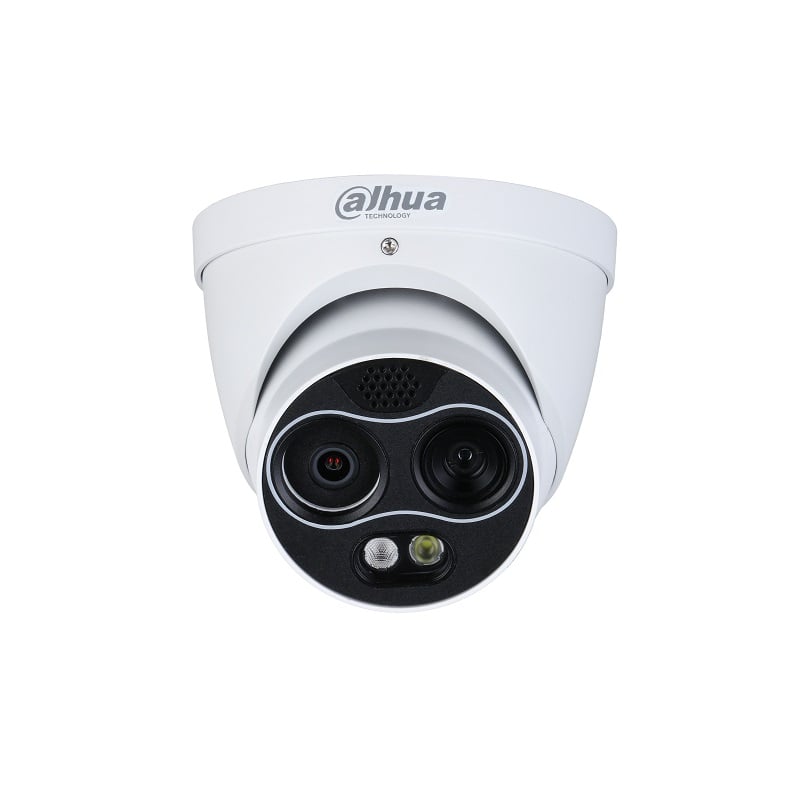

Hybrid dome IP thermal camera produced by Dahua. The equipment includes built-in alarm inputs/outputs. While a resolution of 4 Mpx is available in the visible spectrum, the thermal camera works with a resolution of 256 x 192 px. Thanks to IP 67 protection, the camera can also be used outdoors.
Dome hybrid thermal camera , exterior, Vanadium Oxide Uncooled FPA sensor, Smart IR LED afterglow 30 m , thermal imaging resolution 256 × 192 px @ 25 fps, thermal sensitivity < 50 mK @ F1.0, spectrum range 8–14 µm, pixel pitch 12 µm , visible spectrum resolution 4 Mpx (2336 × 1752 px)@ 25 fps, thermal imaging lens 3.5 mm, lens 4 mm , thermal imaging angle H: 50.6°, V: 37.8°, video imaging angle H: 71 ,2°, H: 52°, intelligent functions – perimeter protection, person detection: 83 m, person recognition: 21 m, person identification: 11 m, vehicle detection: 222 m, vehicle recognition: 55 m, vehicle identification: 27 m , compression H.265 / H.264M / H.264H / H.264B / MJEPG, ONVIF compatible, BLC, HLC, DWDR, AGC, 2D NR, 3D NR, ROI, alarm I/O 1/1, audio I/ O 1/1, 1x RS-485, MicroSD card slot 256 GB , power supply DC 12 V / PoE, 1 A, IP 67 , consumption max. 13 W, dimensions 122 × 122 × 112 mm, working temperature from -30 °C to +60 °C, weight 0.85 kg
| Type of technology | IP cameras |
| Product type | Cameras |
| Features for image enhancement | BLC, HLC, DWDR, AGC, Ultra DNR (2D/3D), ROI |
| Glare | IR |
| Smart features | Tripwire, Intrusion |
| Designation of cameras | Thermal cameras |
| IR / LED backlight | 30 m |
| Card support | micro SD |
| Manufacturer | Dahua |
| Environment | Exterior |
| Power supply | 12 V DC, PoE |
| Coding | MJPEG, H.264B, H.265, H.264M, H.264H |
| Degree of coverage | IP 67 |
| Construction | Turret |
| Resolution | 4 Mpx |
| Lens | Fixed 4 mm, Fixed, Fixed 3.6 mm |
| Type | IP camera |
| I/O | Alarm, Audio |
| Weight | 1.091 kg |
Resolution |
4MP |
|---|---|
2336 (H) × 1752 (V) |
|
Camera Feather |
Security Cameras |
Detection Distance |
146M |
Lite |
|
Resolutions Security camera |
4MP |
thermal |
Thermal 256*192 |
Thermal Lens |
3.5mm Thermal Lens |
Case Type Cam |
Dome מצלמות כיפה |
