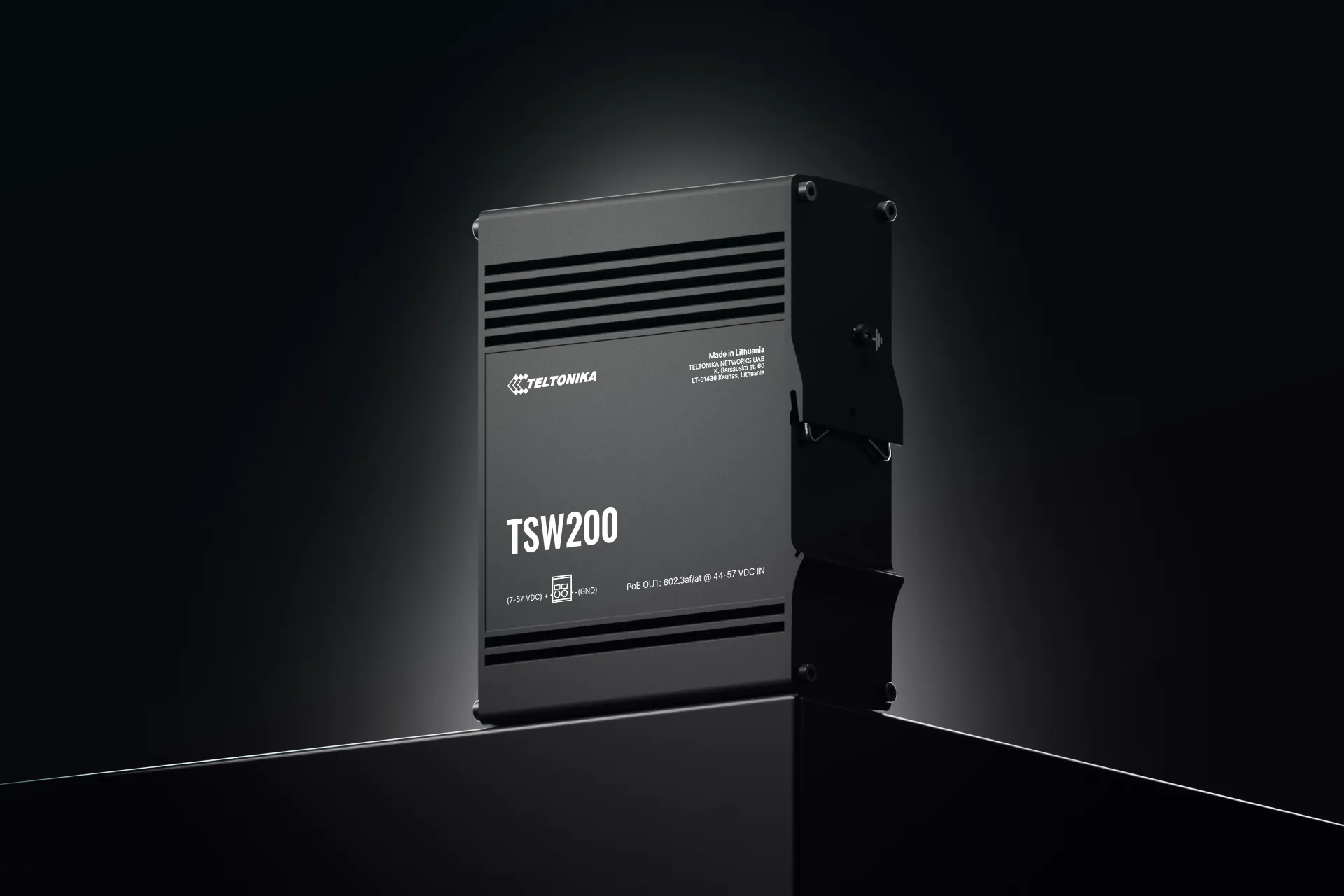

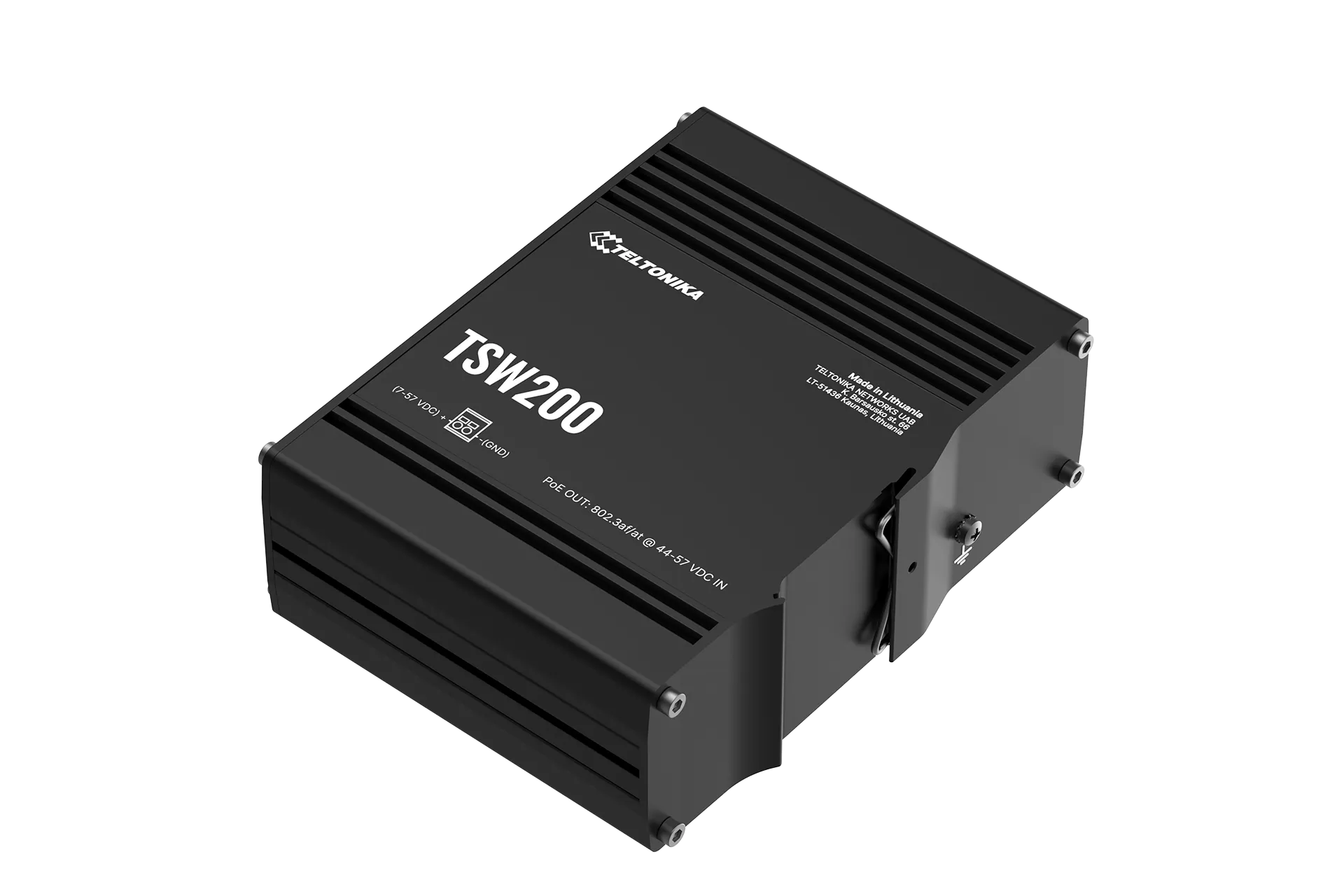

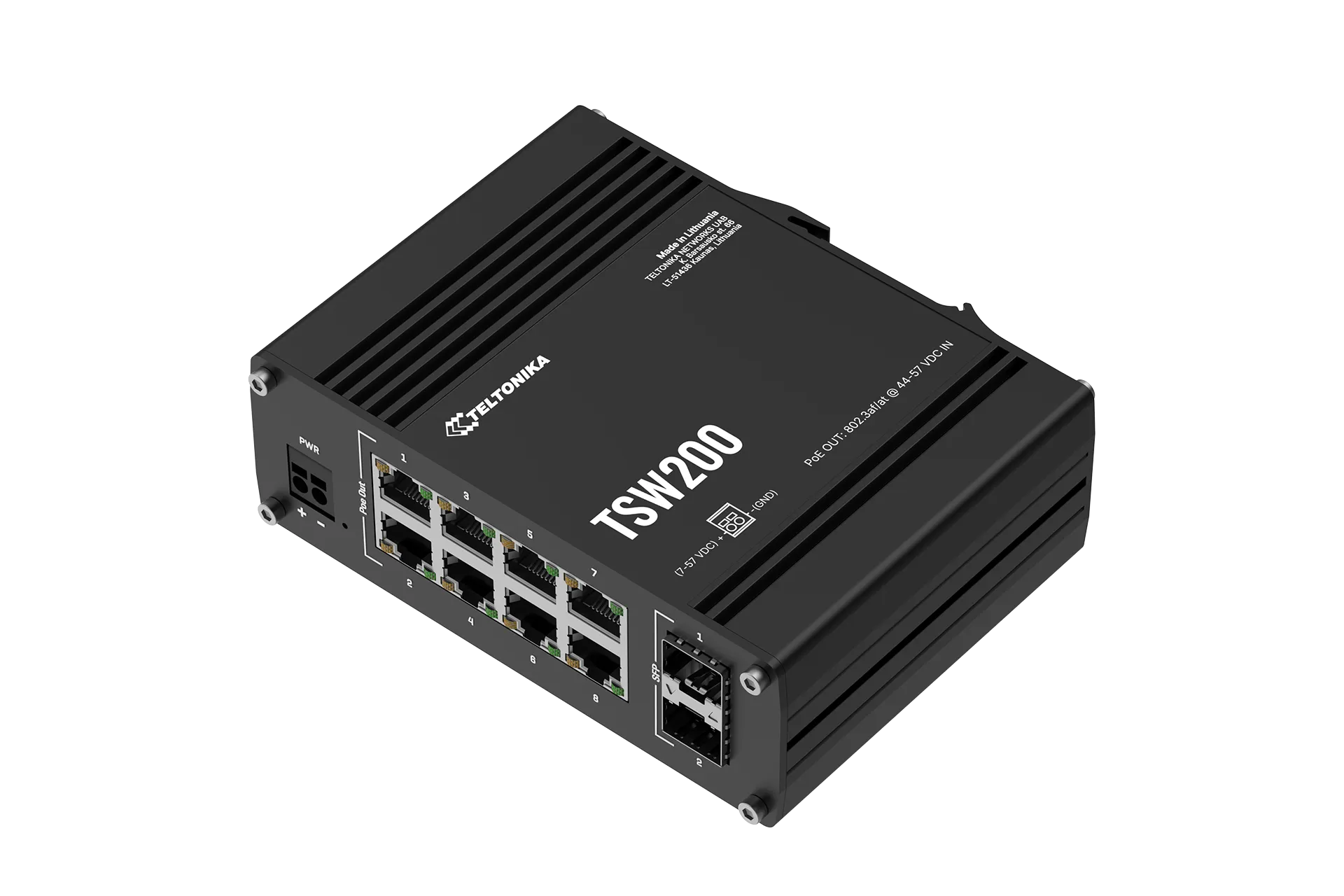

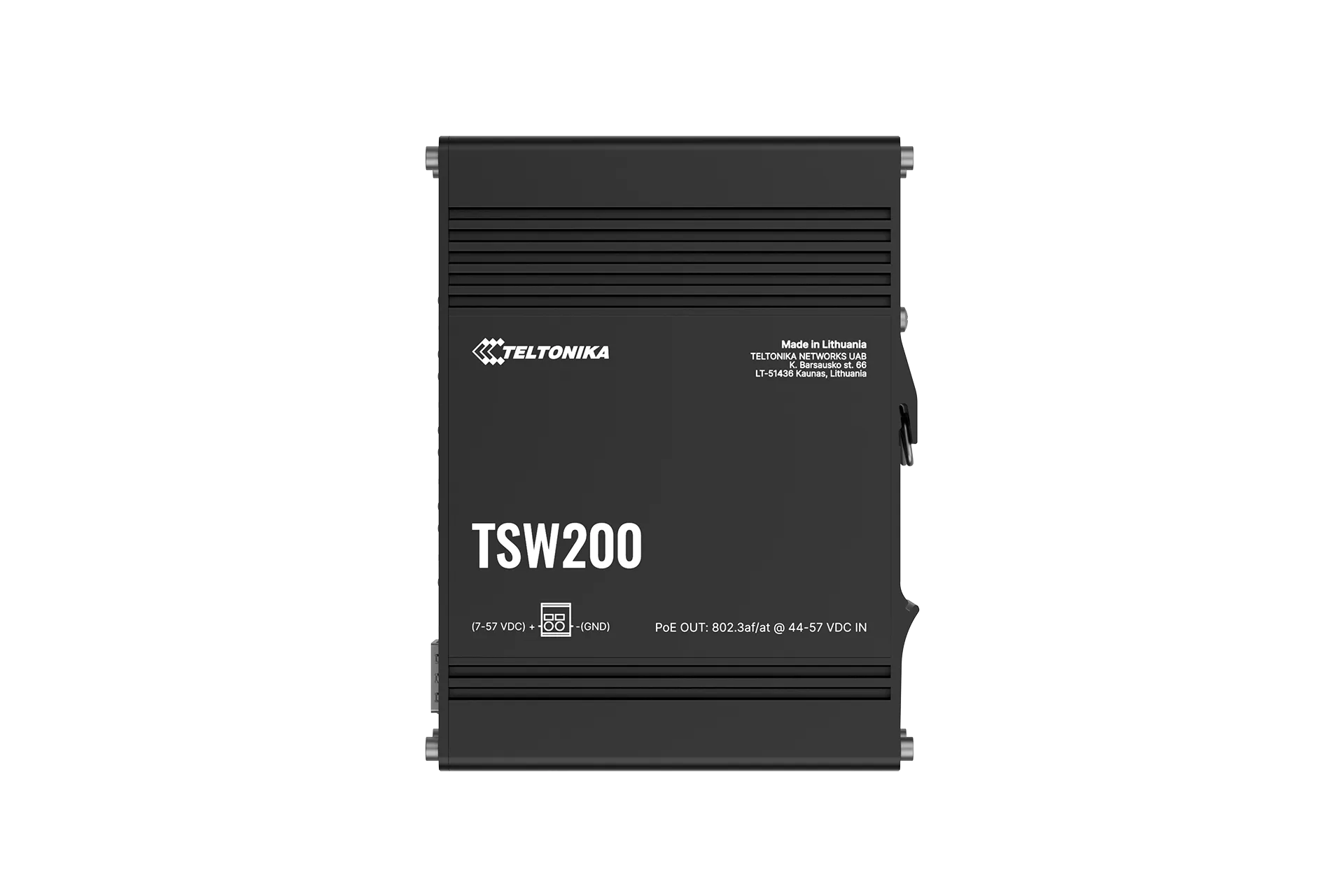

TSW200 – INDUSTRIAL POE+ ETHERNET SWITCH

  • TELTONIKA
  • 8 x RJ45 ports, 10/100/1000 Mbps
  • 1 x 2-pin industrial DC power socket
  • 132 x 44.2 x 95.1 mm
  • 517 g

המחיר שלנו ₪649
לפני מע"מ: ₪550.00

TELTONIKA
מק"ט TSW200 קטגוריה תגית מותג:
מחיר משלוח: עד הבית/עסק UPS (עד 5 ק"ג): ₪50
מחיר כולל משלוח: ₪699
לבירור זמינות ומחיר
*התמונות והתיאור באתר להמחשה בלבד. *מבוסס על AI ויכול לטעות (טל"ח). *יש להסתמך על מפרט הטכני הרשמי של היצרן​.

תיאור

TSW200

INDUSTRIAL POE+ ETHERNET SWITCH

TSW200 is an industrial Ethernet switch with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports that support IEEE802.af and IEE802.3at Power-over-Ethernet standards. Classified as power source equipment (PSE), it enables the centralization of the power supply, providing up to 30 watts per port and reducing the effort to install power.

Ethernet
ETH

8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

Fibre

2 x SFP ports

IEEE 802.3 series standards

802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

INDUSTRIAL PROTOCOLS
Profinet

Profinet Class A conformance (available with optional order code)

POE OUT
PoE+ ports

Port 1 – 8

PoE standards

IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A (From batch 42)

IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative B (From batch 1-41)

PoE Max Power per Port (at PSE)

30 W

Total PoE Power Budget (at PSE)

240 W

Performance Specifications
Bandwidth (Non-blocking)

20 Gbps

Packer buffer

128 KB

MAC address table size

2K entries

Jumbo frame support

9216 bytes

Power
Connector

2-pin industrial DC power socket

Input voltage range

7 – 57 VDC

PoE-Out input voltage range

44 – 57 VDC

Power consumption

Idle: 1.81 W / Max: 5.5 W / PoE Max: 245.5 W

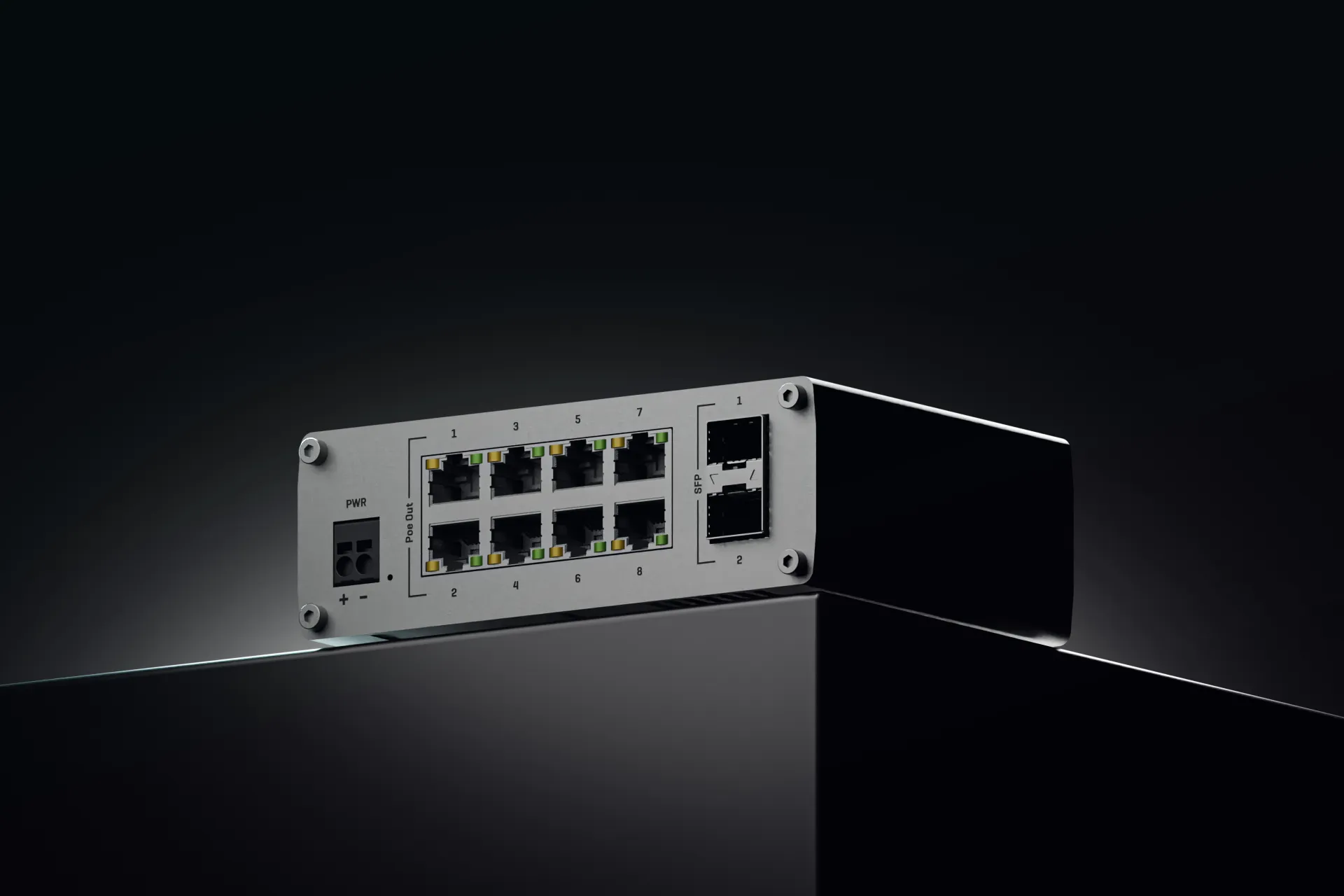

Physical Interfaces
Ethernet

8 x RJ45 ports, 10/100/1000 Mbps

Fibre

2 x SFP ports

Status LEDs

1 x Power LED, 16 x ETH status LEDs 2 x SFP status LEDs

Power

1 x 2-pin industrial DC power socket

Other

1 x Grounding screw

Physical Specification
Casing material

Full aluminum housing

Dimensions (W x H x D)

132 x 44.2 x 95.1 mm

Weight

517 g

Mounting options

Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)

Operating Environment
Operating temperature

-40 °C to 75 °C

Operating humidity

5% to 95% non-condensing

Ingress Protection Rating

IP30

Regulatory & Type Approvals
Regulatory

CE, UKCA, CITC, ANRT, FCC, IC, CB

EMC Emissions & Immunity
Standards

EN 55032:2015 + A1:2020

EN 55035:2017 + A11:2020

EN IEC 61000-3-2:2019 + A1:2021

EN 61000-3-3:2013 + A1:2019

ESD

EN 61000-4-2:2009

Radiated Immunity

EN IEC 61000-4-3:2020

EFT

EN 61000-4-4:2012

Surge Immunity (AC Mains Power Port)

EN 61000-4-5:2014 + A1:2017

CS

EN 61000-4-6:2014

DIP

EN IEC 61000-4-11:2020

Safety
Standards

IEC 62368-1:2018

EN IEC 62368-1:2020+A11:2020

Downloads

מידע נוסף

Manufacturers

Ethernet type

8 x RJ45 ports, 10/100/1000 Mbps

Power

1 x 2-pin industrial DC power socket

Dimension

132 x 44.2 x 95.1 mm

PRODUCT WEIGHT

517 g
