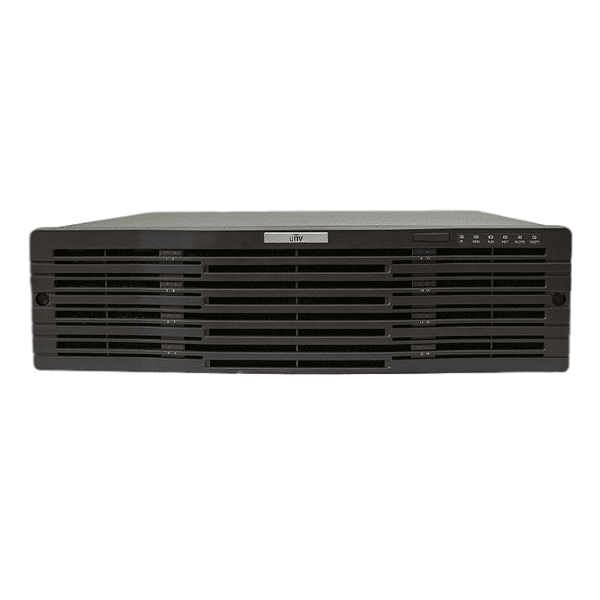

Uniview NVR516-128

Up to 12MP

המחיר שלנו ₪17,298
לפני מע"מ: ₪14,659.00

מק"ט NVR516-128 קטגוריה מכשירי הקלטה NVR של Uniview: טכנולוגיית ניהול וידאו מתקדמת (Network Video Recorders) תגיות 128-CH, Network Video Recorders מותג: Uniview

מחיר משלוח: עד הבית/עסק UPS (עד 5 ק"ג): ₪50

מחיר כולל משלוח: ₪17,348

לבירור זמינות ומחיר

*התמונות והתיאור באתר להמחשה בלבד. *מבוסס על AI ויכול לטעות (טל"ח). *יש להסתמך על מפרט הטכני הרשמי של היצרן.

תיאור

128-ch, 16 SATA interface, 3U, H.264, H.265&4K, 4 NICs, 2 SFP, RAID0,1,5,6,10,50,60, Hard disk hot-pluggable on front panel, Multi-Display Support, Alarm I/O 24/8No PoE ports

Support Ultra 265/H.265/H.264 video formats128-channel input
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution
HDMI1, HDMI2 and VGA independent outputs provided
Up to 12 Megapixels resolution recording
Redundant power supply optional
2 decoding cards optional, up to 12-ch HDMI
Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
16 SATA HDDs, up to 10TB for each HDD
Support 2 miniSAS Interfaces
Support 12V power output
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
Support N+1 Hot spare

Specifications

Model	NVR516-64	NVR516-128
Video/Audio Input
IP Video Input	64-ch	128-ch
Two-way Audio Input	1-ch, BNC
Network
Incoming Bandwidth	384Mbps	512Mbps
Outgoing Bandwidth	384Mbps
Remote Users	128
Protocols	P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output	VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz HDMI1: 4K (3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz HDMI2: 4K (3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, BNC
Synchronous Playback	16-ch
Corridor Mode Screen	3/4/5/7/9/10/12/16/32
Decoding
Decoding format	Ultra 265, H.265, H.264
Live view/Playback	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x D1
Hard Disk
SATA	16 SATA interfaces
Capacity	up to 10TB for each HDD
eSATA	1 eSATA interface
miniSAS	2 miniSAS ports
Smart
VCA Detection	Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
VCA Search	Face search, Behavior search
Statistical Analysis	People counting
Disk Array
Array Type	RAID 0/1/5/6/10/50/60
External Interface
Network Interface	4 RJ-45 10M/100M/1000M adaptive Ethernet Interface 2 1000M SFP Ethernet Interface
Serial Interface	1 x RS232, 1 x RS485
USB Interface	Rear panel: 4 x USB3.0

Alarm In	24-ch
Alarm Out	8-ch
Decoding Card (optional)	2 slots (4-ch HDMI or 6-ch HDMI outputs per card)
Power Output	12V
General
Power Supply	100 ~ 240V AC Power Consumption: ≤ 50 W (without HDD)
Working Environment	-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Chassis	19-inch rack-mounted 3U chassis
Dimensions	482mm ×477mm × 131mm (18.8″× 19.0″ ×5.1″)
Weight (without HDD)	≤ 10 Kg (22.05 lb)
