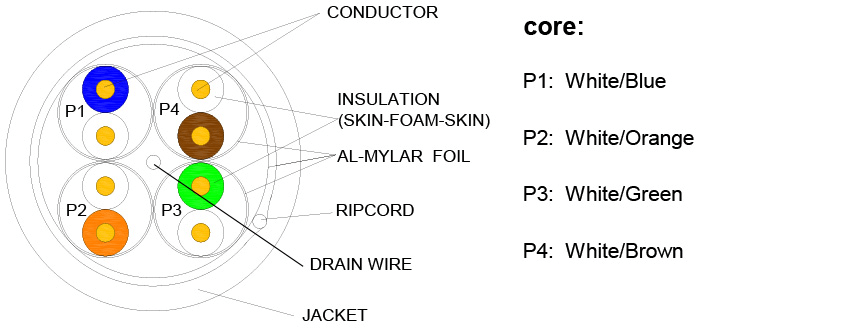

כבל תקשורת STP CAT-7 נחושת מלא – בכבל זה יש 8 גידים שזורים (4 זוגות – כתום/ירוק/כחול/חום)
הכבל משמש להעברת נתונים, לרוב בתקשורת מחשבים.
הכבל מיועד להשחלה וכמו כן ניתן לחבר מחברי RJ45 ממגוון סוגים ויצרנים שונים.
תדירות מקסימלית: 1000Mhz
מהירות מקסימלית: 100Gbps
• Suitable for structured premises cabling
• For transmission of digital and analogue voice and data signals
• Especially suitable for all Class F applications
• ISDN,Ethernet 10 Base-T,Fast Ethernet 100 Base-T, Gigabit Ethernet
• 1000Base-T ,10G Base-T.(IEEE 802.3)
• Token Ring4/16Mbit/s,TP-PMD/TP/DDI 125Mbit/s, ATM 155Mbit/s.(IEEE 802.5 )
• Standard: IEC/ISO 61156-5, ISO/IEC 11801
|
Model |
17005 |
||
|
Conductors |
— |
Solid Bare Copper |
|
|
? 0.56+/-0.008 |
|||
|
Insulation |
Material |
— |
HDPE |
|
Diameter |
mm |
? 1.00+/-0.05 |
|
|
Average Thickness |
mm |
0.25+/-0.05 |
|
|
Shielding1 |
— |
—- |
|
|
Assimbly |
Direction |
— |
S |
|
No. of Insulations |
Pair |
4 |
|
|
Shielding2 |
Material |
— |
Al-Foil Screneed |
|
Drain wire |
Shield |
—- |
2.6AWG. TC |
|
Jacket |
—- |
||
|
Diameter |
? 7.4+/-0.3 |
||
|
Average Thickness |
mm |
0.6+/-0.1 |
|
|
Flame Rate |
—- |
— |
|
|
4 – 100MHz 100±15 (ohms) |
Transfer Impendance |
Max100 mohms/m@100MHz |
|||||||
|
100 – 200MHz 100±22 (ohms) |
Min 40 dB |
||||||||
|
200 – 600MHz 100±32 (ohms) |
Installation temperature |
0~50? |
|||||||
|
Max. Conductor DC Resistance 20?
93.8(ohms/km)
|
Operation temperature |
-20~60? |
|||||||
|
Resistance unbalance (%) |
max 2.5 |
||||||||
|
Pair-to-Ground Capacitance Unbalance |
330 (pF/100m) |
||||||||
|
Frequence |
Min. Rl |
Nom. Il |
Max.
Dop
|
Max.
Skew
|
Min.
Next
|
Min.
Psnext
|
Min.
Acr-F
|
Min.
Psacr-F
|
|
|
(Mhz) |
(Db) |
(Db/100m) |
(Ns/100m) |
Ns/100m) |
(Db) |
(Db) |
(dB/100M) |
(Db/100m) |
|
|
4 |
20.0 |
2.0 |
570.0 |
45.0 |
65.3 |
62.3 |
63.8 |
60.8 |
|
|
8 |
23.0 |
3.8 |
552.0 |
45.0 |
56.3 |
53.3 |
51.8 |
48.8 |
|
|
10 |
24.0 |
5.3 |
545.4 |
45.0 |
50.3 |
47.3 |
43.8 |
40.8 |
|
|
16 |
25.0 |
6.0 |
543.0 |
45.0 |
47.2 |
44.2 |
39.7 |
36.7 |
|
|
20 |
25.0 |
7.6 |
542 |
45.0 |
54.8 |
52.8 |
41.8 |
38.8 |
|
|
25 |
24.3 |
9.5 |
541 |
45.0 |
53.3 |
51.3 |
37.8 |
34.8 |
|
|
31.25 |
23.6 |
10.7 |
540 |
45.0 |
51.9 |
49.9 |
37.9 |
34.9 |
|
|
62.5 |
21.5 |
15.4 |
539 |
45.0 |
47.4 |
45.4 |
31.9 |
28.9 |
|
|
100 |
20.1 |
19.8 |
538 |
45.0 |
44.3 |
42.3 |
27.8 |
24.8 |
|
|
200 |
18.0 |
29.0 |
537 |
45.0 |
39.8 |
37.8 |
21.8 |
18.8 |
|
|
250 |
17.3 |
32.8 |
536 |
45.0 |
38.3 |
36.3 |
19.8 |
16.8 |
|
|
300 |
17.3 |
34.2 |
536 |
25 |
65.2 |
62.2 |
45.8 |
42.8 |
|
|
400 |
17.3 |
40.0 |
536 |
25 |
63.4 |
60.4 |
43.3 |
40.3 |
|
|
500 |
17.3 |
45.3 |
536 |
25 |
61.9 |
58.9 |
41.3 |
38.3 |
|
|
600 |
17.3 |
50.1 |
535 |
25 |
60.7 |
57.7 |
39.7 |
36.7 |
|
|
Note: The above transmission performance for the 100M, 20 ± 2 ? under the conditions tested |
|||||||||
אורך |
500 מטר |
|---|
