– מפצל 1X2.
– מקור מתח 5V 1A (כלול באריזה).
– רזולוציה: 4K 60Hz.

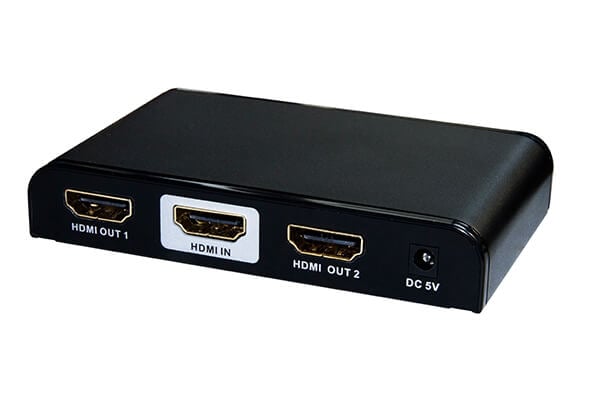

LKV312PRO 4K × 2K 1 × 2 HDMI Splitter This Product distributes 1 way HDMI signal from STB,DVD Blu-ray players or PS3 etc.to 2 ways HDMI signal to connect o projector,DLP,LCD or other HD displays simultaneously.
1. Simultaneously displays 1 Ultra Hi-Def source to 2 Ultra HD displays
2. Supports resolutions up to Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD
3. Supports LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
4. Support HDMI input/output cable 10 to 15 meters at 1080p/8-bit resolution
5. 3DTV pass-through
| HDCP Compliance | Yes |
| HDMI input Resolution support | 480i@60Hz 480p@60Hz 576i@50Hz 576p@50Hz 720p@50/60Hz 1080i@50/60Hz 1080p@50/60Hz 1080p@24Hz 3D 720p@50/60Hz 3D, 4K X 2K@30Hz |
| HDMI Output Resolution support | 480i@60Hz 480p@60Hz 576i@50Hz 576p@50Hz 720p@50/60Hz 1080i@50/60Hz 1080p@50/60Hz 1080p@24Hz 3D 720p@50/60Hz 3D, 4K X 2K@30Hz |
| Color format support | 24-bits /Deep color 30 bits/ Deep color 36-bits |
| Max. Data rate | 10.2Gbps |
| TMDS signal | 0.5~1.5Vp-p(TMDS) |
| DDC signal | 5Vp-p(TTL) |
| The length for HDMI cable | ≤10m(AWG26 standard HDMI cable) |
| ESD protection | 1a Socketed discharge Level 3
1b Air discharge Level 3 Executive standard：IEC61000-4-2 |
| Operation Temperature | -10~55℃ |
| Storage Temperature | -20~70℃ |
| Relative Humidity
(non-condensing) |
0~95% |
| Dimension (L×W×H) | 96mm×59mm×17mm |
| Material | Aluminum alloy |
| Color | Black |
| Weight | 98g |
