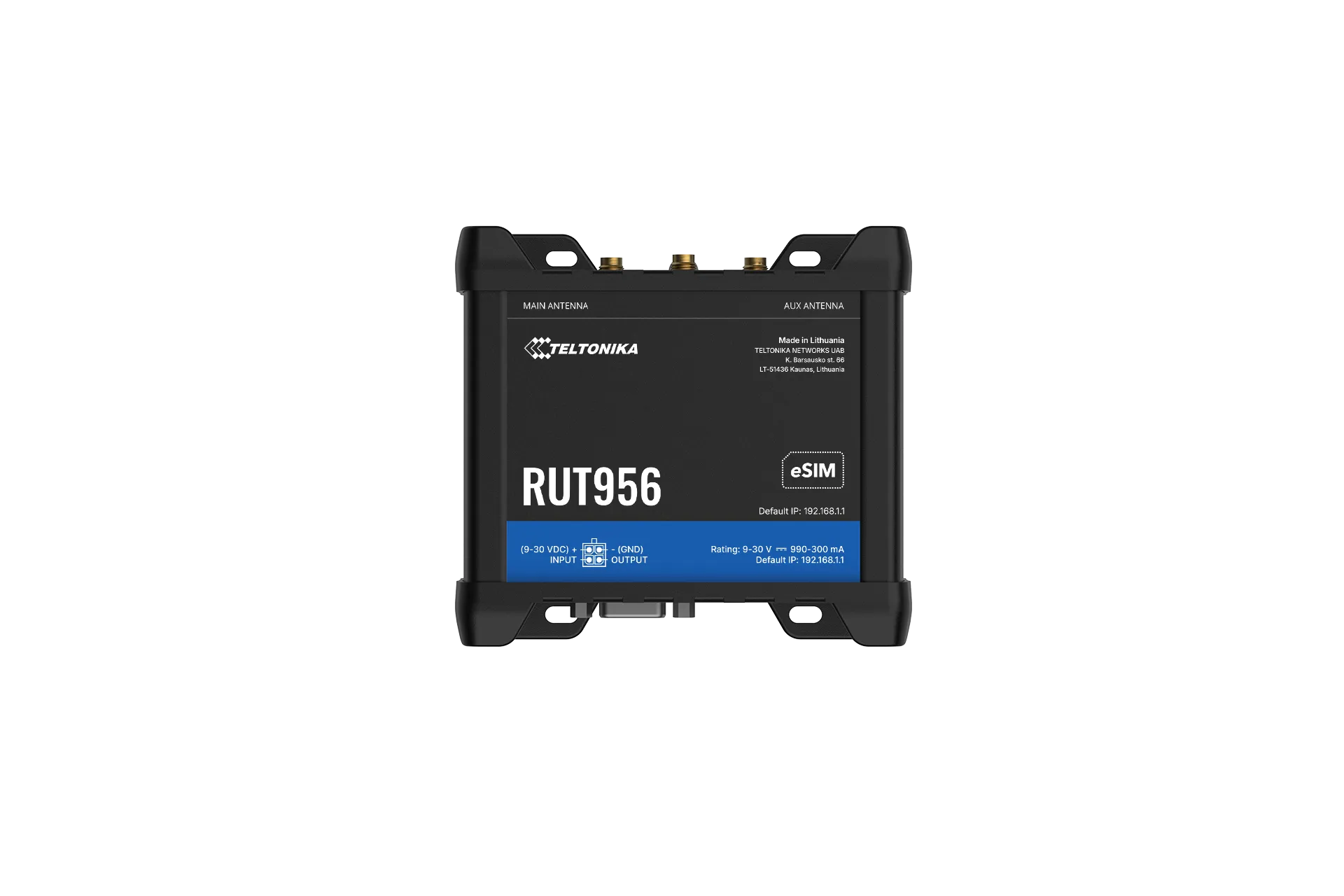

נתב תעשייתי Teltonika RUT956 – נתב סלולרי מתקדם עם ממשקי RS232/RS485 ו-GNSS

4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps

Release 11

Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans

*Feature availability varies by order code

Dual SIM and eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection

*Feature availability varies by order code

IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

Supports sending and reading Unstructured Supplementary Service Data messages

Operator block/allow list (by country or separate operators)

Possibility to use different PDNs for multiple network access and services

Band lock, Used band status display

SIM PIN code management enables setting, changing, or disabling the SIM card's PIN

Auto APN

Direct connection (bridge) between mobile ISP and device on LAN

Router assigns its mobile WAN IP address to another device on LAN

802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)

WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)

SSID stealth mode and access control based on MAC address

Up to 100 simultaneous connections

Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)

Allowlist, blocklist

Once scanned, a user will automatically enter your network without needing to input login information

Forward Wi-Fi hotspot landing page to a subsequent connected device

1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX

3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP()S, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN

H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Port forward, traffic rules, custom rules, TTL target customisation

View all your Firewall statistics, rules, and rule counters

View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

Visual representation of your network, showing which devices are connected to which other devices

Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

Supported >77 service providers, others can be configured manually

DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

Balance Internet traffic over multiple WAN connections

Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

Hotspot 2.0 is a Wi-Fi standard that enables seamless, secure, and automatic connection to trusted wireless networks

Possibility to mount remote file system via SSH protocol

Initial virtual routing and forwarding (VRF) support

Real-time monitoring, wireless signal charts, traffic usage history

Mirroring network traffic on Ethernet ports for monitoring and analysis

Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64

DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

Port and tag-based VLAN separation

Mobile data limit, customizable period, start time, warning limit, phone number

Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Flexible access control of SSH, Web interface, CLI and Telnet

Certificate creation tool allows to create CA, server, client, let's encrypt, SCEP certificates

Multiple clients and a server can run simultaneously, 27 encryption methods

DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

GRE tunnel, GRE tunnel over IPsec support

Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support

SSTP client instance support

ZeroTier VPN client support

WireGuard VPN client and server support

Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

Router

RS485, TCP

Support for multiple BACnet/IP interfaces, Network number assignment, Preconfigured BDT entries for BBMD (BACnet Broadcast Management Device)

Client, Server

TCP

Server, Client

RTU (RS232, RS485), TCP, USB

MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

HTTP(S), MQTT, Azure MQTT

Allows sending commands and receiving data from MODBUS Server through MQTT broker

Station, Outstation

RS232, RS485, TCP, USB

DLMS – standard protocol for utility meter data exchange

Client

RS232, RS485, TCP

Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status

Firmware update from server, automatic notification

SSH (v1, v2)

SMS status, SMS configuration

Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off

OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

MQTT Broker, MQTT publisher

SNMP (v1, v2, v3), SNMP Trap, Brute force protection

Management API over HTTP/HTTPS

Teltonika Remote Management System (RMS)

Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions

Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs

Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

Mediatek, 580 MHz, MIPS 24KEc

128 MB, DDR2

16 MB, SPI Flash

Update FW from file, check FW on server, configuration profiles, configuration backup

Update FW

Update FW/configuration for multiple devices at once

Update FW without losing current configuration

A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

RutOS (OpenWrt based Linux OS)

Busybox shell, Lua, C, C++

SDK package with build environment provided

You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

The Package Manager is a service used to install additional software on the device

GPS, GLONASS, BeiDou, Galileo and QZSS

GNSS coordinates via WebUI, SMS, TAVL, RMS

NMEA 0183

NTRIP protocol (Networked Transport of RTCM via Internet Protocol)

Supported server software TAVL, RMS

Configurable multiple geofence zones

DB9 connector, RS232 (with RTS, CTS flow control)

RS485 Full Duplex (4 wires) and Half Duplex (2 wires). 300-115200 baud rate

Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client

USB 2.0

Samba share, USB-to-serial

Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter

FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

1 x digital dry input (0 – 3 V), 1 x digital galvanically isolated input (0 – 30 V), 1 x analog input (0 – 24 V; with 4-20 mA capability), 1 x Digital non-isolated input (on 4-pin power connector, 0 – 5 V detected as logic low, 8 – 30 V detected as logic high)

1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)

Email, RMS, SMS

Allows to set certain I/O conditions to initiate event

Micro SD (internal)

Samba share, Storage Memory Expansion, DLNA

Up to 2 TB

FAT32, NTFS, ext2, ext3, ext4

4-pin industrial DC power socket

9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max

Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 – 30 VDC

< 2 W idle, < 7 W Max

4 x RJ45 ports, 10/100 Mbps

2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector (available from HW revision 1600)

1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power

2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, external SIM holders, eSIM

1 x 4-pin power connector

1 x 10-pin industrial socket for inputs/outputs

2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS

1 x USB A port for external devices

1 x DB9 socket

1 x 6-pin industrial socket

Reboot/User default reset/Factory reset button

Aluminium housing, plastic panels

110 x 50 x 100 mm

287 g

DIN rail, wall mount, flat surface (all require additional kit)

-40 °C to 75 °C

10% to 90% non-condensing

IP30

CE, UKCA, ANRT, Kenya, CITC, ICASA, FCC, IC, PTCRB, Anatel, RCM, Giteki, IMDA, ECE R118, E-mark, UL/CSA Safety, CB, RoHS, REACH, NCC, C1D2

AT&T, Verizon, T-Mobile

EN 55032:2015 + A11:2020

EN 55035:2017 + A11:2020

EN IEC 61000-3-2:2019 + A1:2021

EN 61000-3-3:2013 + A1:2019

EN 301 489-1 V2.2.3

EN 301 489-17 V3.2.4

EN 301 489-19 V2.1.1

EN 301 489-52 V1.2.1

EN 61000-4-2:2009

EN 61000-4-3:2020

EN 61000-4-4:2012

EN 61000-4-5:2014 + A1:2017

EN 61000-4-6:2014

EN 61000-4-11:2020

EN 300 328 V2.2.2

EN 301 511 V12.5.1

EN 301 908-1 V15.2.1

EN 301 908-2 V13.1.1

EN 301 908-13 V13.2.1

EN 303 413 V1.1.1

CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017

RCM: AS/NZS 62368.1:2022

CB: IEC 62368-1:2018

UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)

UL/CSA Safety: UL 121201, 9th Ed., Rev. April 1, 2021, CAN/CSA C22.2 No. 213, 3rd Ed. April 2021

Class I, Division 2, Groups A, B, C, D

Class I, Zone 2, Group IIC

-40°C ≤ Ta ≤ 75°C, T4, IP30
